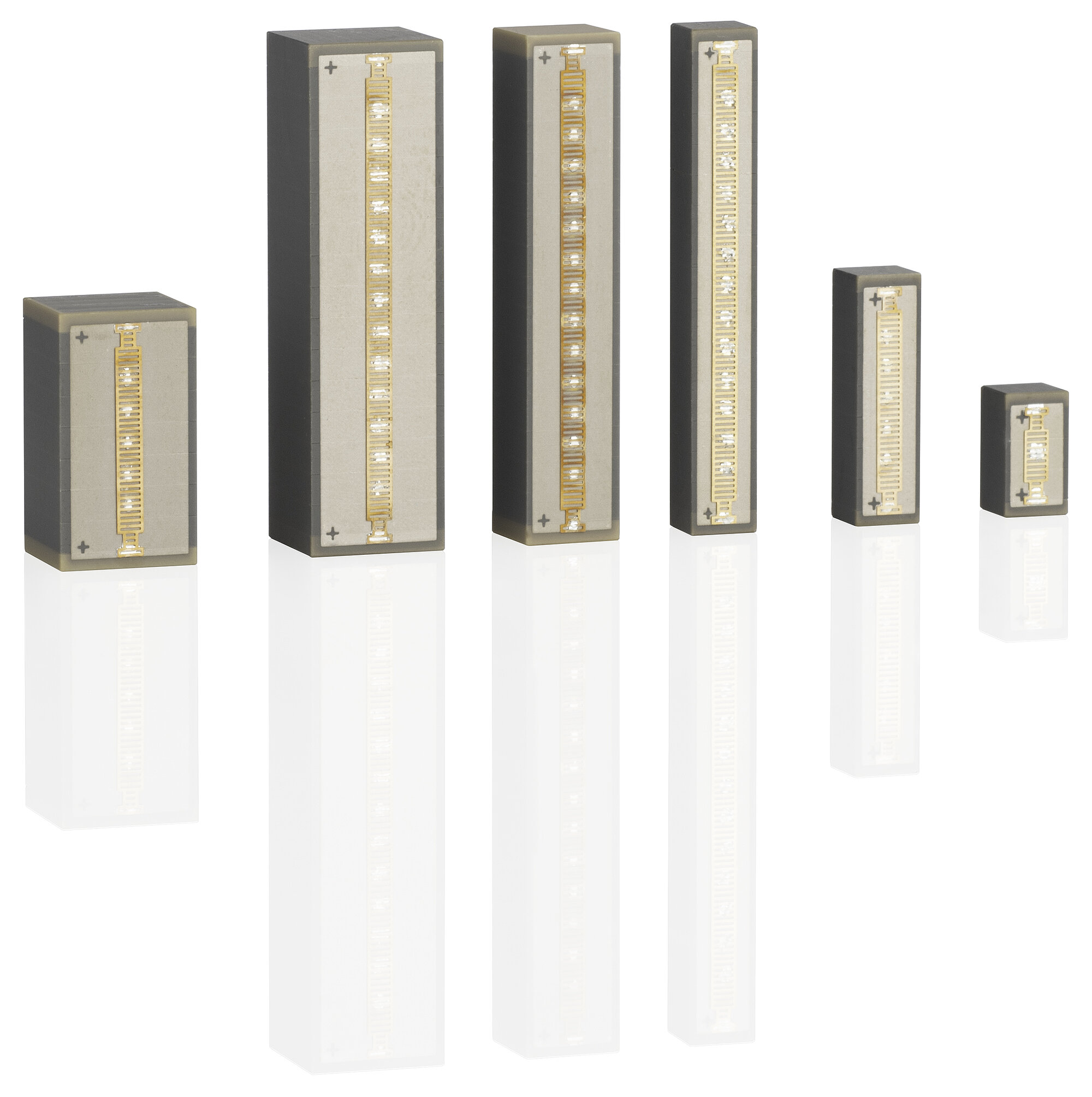

PICMA® PLUS Stack Multilayer Piezo Actuators

NOUVEAU

Ceramic Insulated High-Power Actuators

Longer travel ranges
Superior lifetime
High stiffness
µs response time
Subnanometer resolution
UHV-compatible to 10^-9 hPa

Specific tips (tips and bases) can be mounted for mechanical coupling of the actuators. Possible designs are flat or spherical tips made of metal, ceramics, glass or sapphire. Application-specific tips can be manufactured on request.

PICMA® PLUS Stack actuators, dimensions in mm. For L, A, B, see data table.

For high dynamics applications, the multilayer actuators are equipped with electrodes for especially high currents of up to 20 A. Together with a high-power piezo amplifier such as the E-618, high operating frequencies in the kHz range can be attained. The rise times for the nominal displacement are a few tens of microseconds.

PICMA® multilayer actuators with all-ceramic insulated inner hole

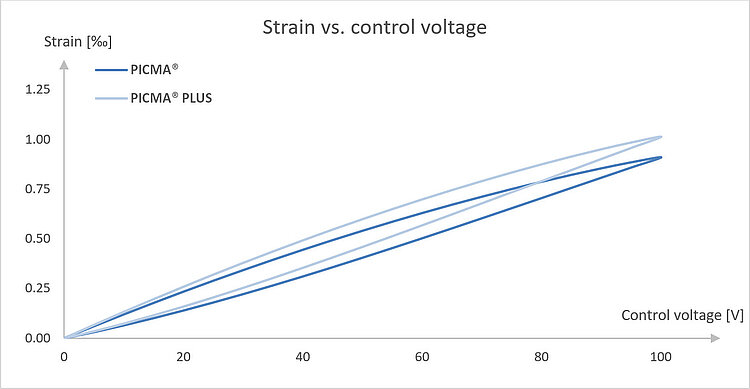

General displacement behavior with control from 0 V to 100 V

Operating voltage -20 to 120 V. Ceramic insulation, polymer-free. Insensitive to humidity. Excellent temperature stability. UHV-compatible to 10^-9 hPa, no outgassing, high bakeout temperature. Ideal for dynamic operation. Flexible thanks to numerous designs. Encapsulated versions for operation in splash water or oil.

For high operating temperature up to 200 °C
Special electrodes for currents up to 20 A
Variable geometry: inner hole, round, rectangular
Ceramic or metal tips in many versions
Applied strain gauge sensors for positional stability
Available with optional connecting wires

Industry and research. Cryogenic environment with reduced displacement. For high-speed switching, precision positioning, active and adaptive systems, precision dosing.

Télécharger la fiche technique Aller aux spécifications Aller au devis / à la commande

Datasheet

Datasheet PICMA® PLUS Multilayer Piezo Actuators

Version / Date

2025-05-05

pdf - 678 KB

Version / Date

2025-05-05

pdf - 690 KB

Télécharger

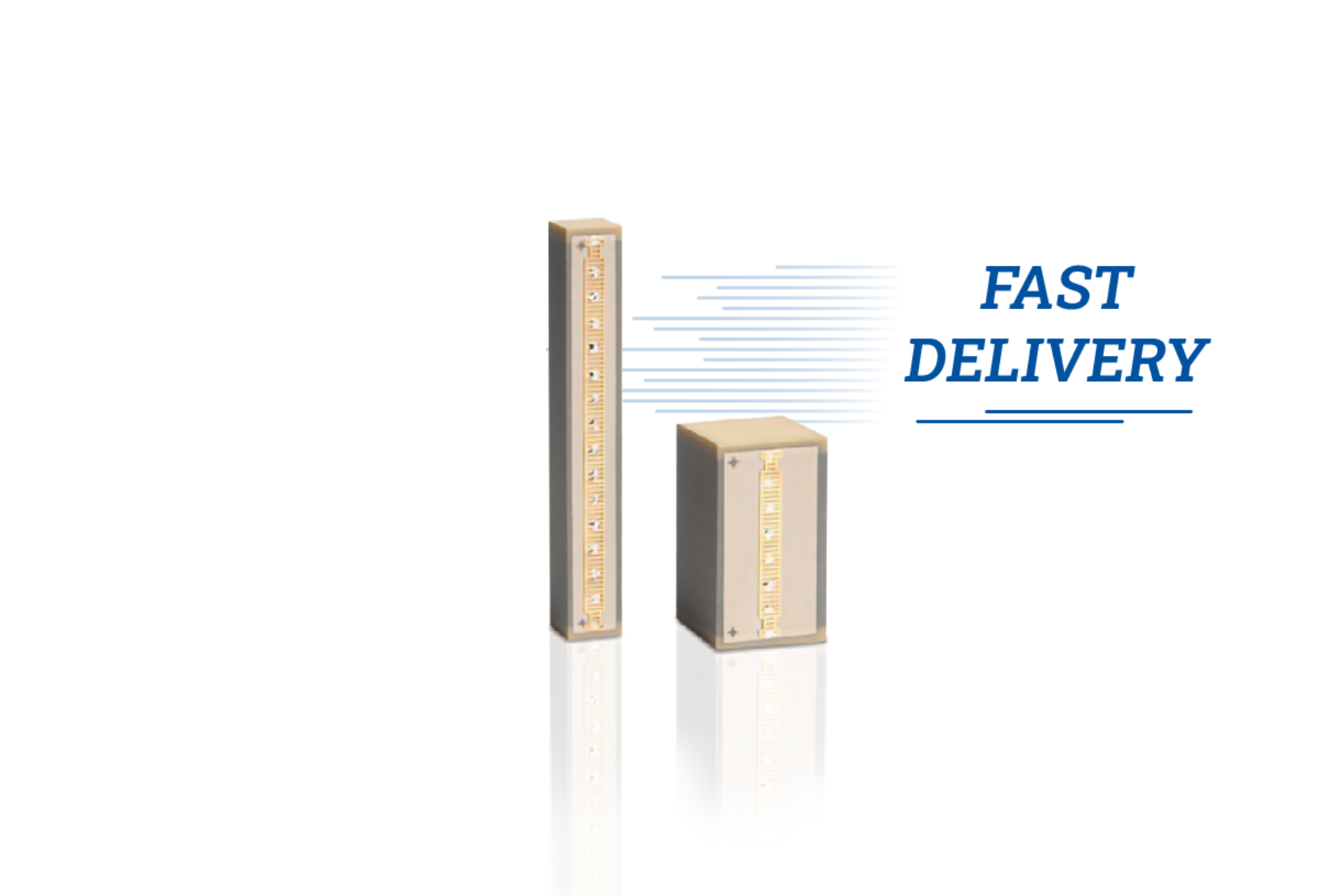

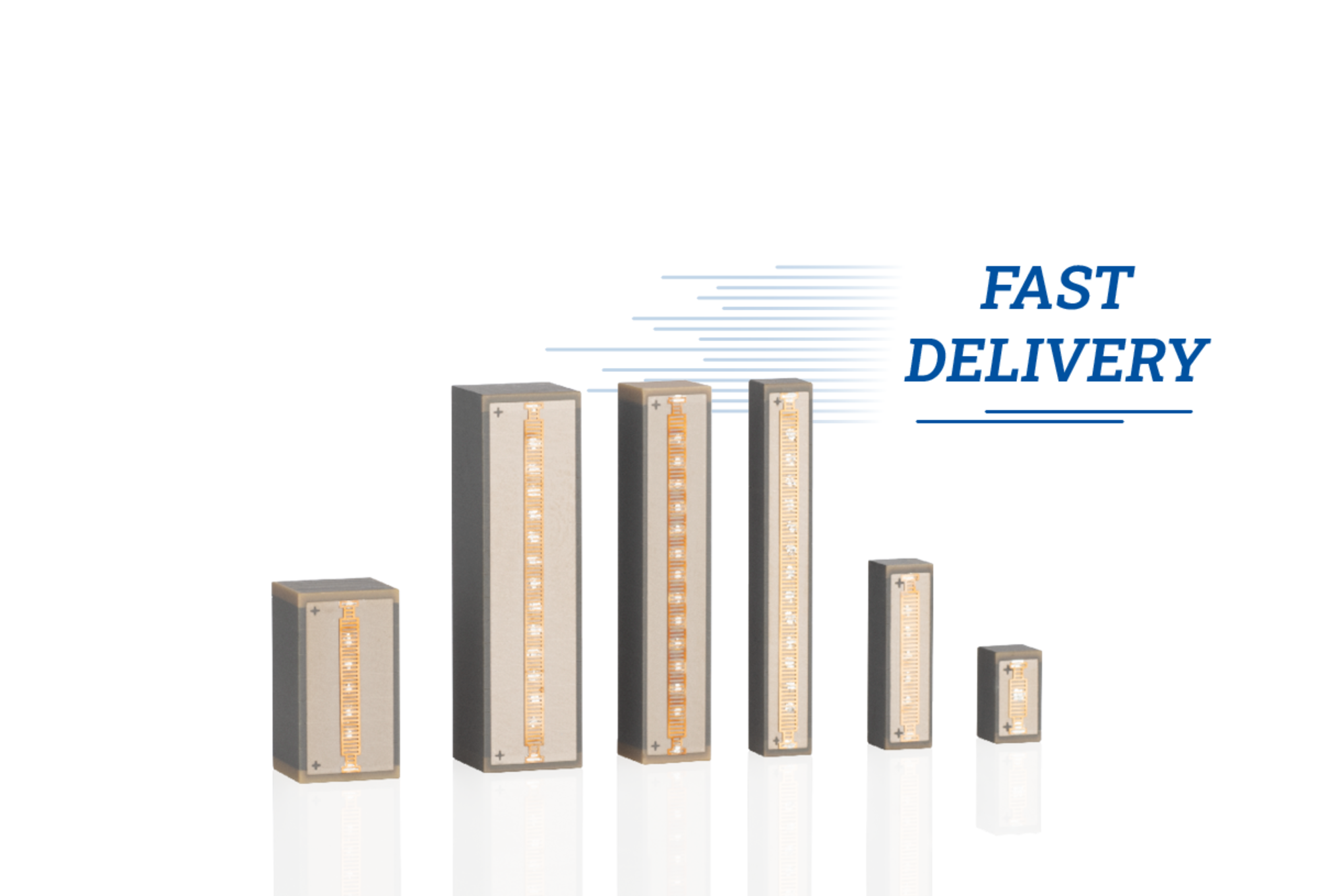

PICMA® Actuators with Shorter Lead Times Selected actuators are available with shorter lead times. Corresponding variants are highlighted in bold in the table below.

	Dimensions A × B × L	Nominal travel range	Max. travel range	Blocking force	Stiffness	Electrical capacitance	Resonant frequency
	mm³	µm	µm	N	N/µm	µF	kHz
000128015	3 × 2 × 9	8	9.5	220	23	0.17	135
000128024	3 × 2 × 18	17	20	240	12	0.35	70
000128026	3 × 3 × 9	8	9.5	320	34	0.24	135
000128103	3 × 3 × 18	17	20	340	17	0.54	70
000128105	5 × 5 × 9	8	9.5	880	93	0.68	135
000124106	5 × 5 × 18	17	20	930	46	1.6	70
000100014	5 × 5 × 36	36	43	1000	23	3.5	40
000127854	7 × 7 × 13.5	12.5	15	1860	124	2.5	90
000125974	7 × 7 × 36	36	43	2000	46	7.2	40
000128404	10 × 10 × 18	17	20	3720	186	6.8	70
000128106	10 × 10 × 36	36	43	4000	93	14.6	40

Nominal travel range: At 0 V to 100 V, tolerance -10 % +∞.

Maximum travel range: At 0 V to 120 V, tolerance -10 % +∞.

Blocking force: At 0 V to 120 V. Preload: 5 MPa.

Electrical capacitance: Measured at 1 V_pp, 1 kHz, RT, tolerance ±20 %.

Resonant frequency: Measured at 1 V_pp, unloaded, unclamped. For unilateral clamping, the value is halved. Tolerance ±20 %.

Piezoceramics: PIC252.

Standard connections: Solderable contacts.

Operating voltage range: -20 V to 120 V.

Operating temperature range: -40 °C to 150 °C.

Recommended preload for dynamic operation: 15 MPa.

Maximum preload for constant force: 30 MPa.

Customized versions or different specifications on request.

Differences to PICMA^® P-882 – P-888 (basic characteristics)	PICMA^®	PICMA^® PLUS
Material	PIC252	PIC252
Insulation	Ceramics	Ceramics
Travel range (5×5×36 mm)	(32 µm)	+12 % (36 µm)
Electrical capacitance (5×5×36 mm)	(3.1 µF)	+15 % (3.6 µF)
DC lifetime (MTTF)	60 years*	60 years*
AC lifetime	1 × 10⁹**	1 × 10⁹***

* Test conditions: relative humidity = 70 % RH | Temperature = 22 °C | Voltage = 100 V DC

** 1 × 10⁹ cycles tested, test conditions: 0 V - 100 V, sine wave, frequency > 10 Hz ... < xxx Hz (limited to self-heating of actuator)

*** 1 × 10⁹ cycles estimated, 3 × 10⁸ cycles tested, test conditions: 0 V - 100 V, sine wave, frequency > 10 Hz ... < xxx Hz (limited to self-heating of actuator)
