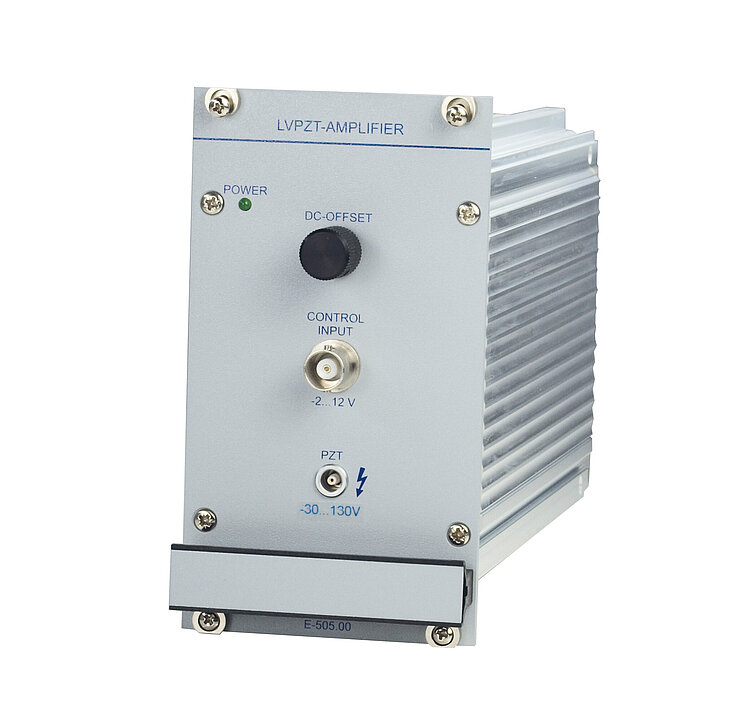

E-505 Piezo Amplifier Module
High Power, E-500 Piezo Controller System
- Peak current to 10 A
- Output voltage range -30 to 130 V
- Module for E-500 piezo controller rack
- Position control (optional)
- Interface / display modules (optional)

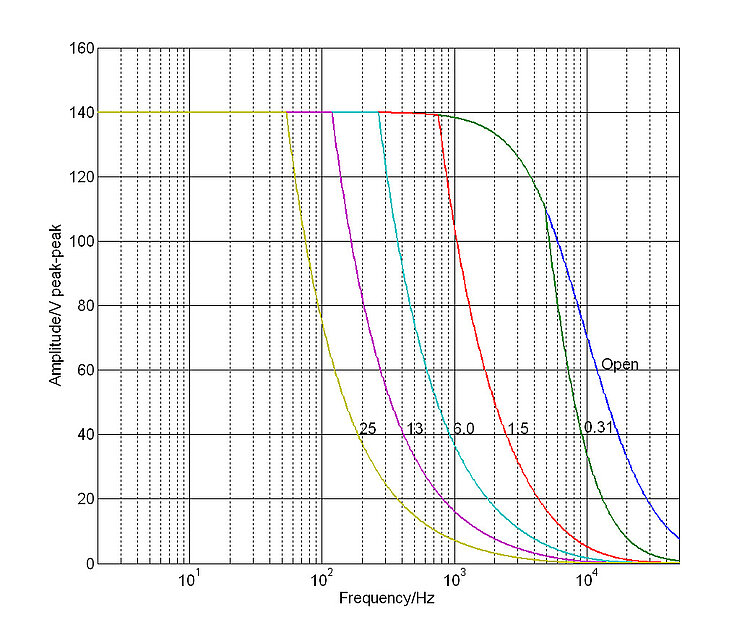

Specifications
Datasheet E-505
Specifications
Amplifier | E-505.00 | E-505.10 | E-505.00S |
---|---|---|---|
Input voltage range | -2 to +12 V | -2 to +12 V | - |
Output voltage | -30 to +130 V | -30 to +130 V | 100 V |
Peak current | 2 A (<3 ms) | 10 A (<200 µs) | 2 A (<5 ms) |
Average output current | 215 mA | 215 mA | 300 mA |
Current limitation | Short-circuit proof | Short-circuit proof | Short-circuit proof |
Noise, 0 to 100 kHz | <0.6 mVrms | 1.0 mVrms | <0.7 mVrms |
Voltage gain | 10 ±0.1 | 10 ±0.1 | - |
Input impedance | 1 MΩ / 1 nF | 1 MΩ / 1 nF | - |
Miscellaneous | E-505.00 | E-505.10 | E-505.00S |
---|---|---|---|
Operating temperature range | 5 to 50 °C | 5 to 50 °C | 5 to 50 °C |
Overheat protection | Deactivation at 85°C | Deactivation at 85°C | Deactivation at 85°C |
Dimensions | 14 HP / 3 RU | 14 HP / 3 RU | 14 HP / 3 RU |
Mass | 0.9 kg | 0.9 kg | 0.9 kg |
Operating voltage | E-500 system | E-500 system | E-500 system |
Max. power consumption | 55 W | 55 W | 55 W |
Downloads
Datasheet
Datasheet E-505
Documentation
Short Instructions PZ300
Housed Analog Piezo Electronics E-4xx, E-5xx, E-6xx, E-8xx
User Manual PZ62
E-500 / E-501 Series Modular Piezo Controller: Chassis with power supply, amplifier modules (E-503, E-504, E-505, E-506, E-508), sensor and servo-control module (E-509), display and interface modules (E-515, E-517).
