PL0xx PICMA® Chip Actuators
Miniature Multilayer Piezo Actuators
- Superior lifetime
- Ultra-compact: From 2 mm × 2 mm × 2 mm
- Ideal for dynamic operation
- Microsecond response
- Subnanometer resolution
- UHV-compatible to 10-9 hPa
Piezo linear actuator with PICMA® multilayer technology
Operating voltage -20 to 100 V. Ceramic insulation, polymer free. Humidity resistance. UHV-compatible to 10-9 hPa, no outgassing, high bakeout temperature. Flexible thanks to numerous designs. Versions with rectangular, round or annular cross section.
Possible modifications
PTFE-insulated wire leads. Various geometric shapes, inner hole. Precision-ground ceramic end plates.
Fields of application
Industry and research. For laser tuning, microdispensing, life sciences.
Specifications
Datasheet PL0xx
Specifications

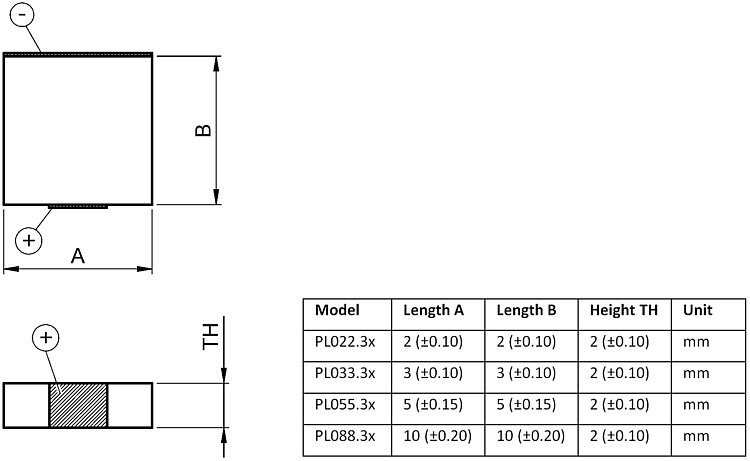

PL022.3x | PL033.3x | PL055.3x | PL088.3x | Unit | Tolerance | |
---|---|---|---|---|---|---|
Side length (A) | 2 ±0.10 | 3 ±0.10 | 5 ±0.15 | 10 ±0.20 | mm | |
Side length (B) | 2 ±0.10 | 3 ±0.10 | 5 ±0.15 | 10 ±0.20 | mm | |
Height (TH) | 2 ±0.10 | 2 ±0.10 | 2 ±0.10 | 2 ±0.10 | mm | |
Travel range* | 2.2 | 2.2 | 2.2 | 2.2 | µm | ±20 % |
Blocking force** | >120 | >300 | >500 | >2000 | N | |
Electrical capacitance*** | 25 | 75 | 250 | 1100 | nF | ±20 % |
Axial resonant frequency**** | >600 | >600 | >600 | >600 | kHz | |
Piezo ceramic | PIC252 | PIC252 | PIC252 | PIC252 | ||
Operating voltage range | -20 to 100 | -20 to 100 | -20 to 100 | -20 to 100 | V | |
Operating temperature range | -40 to 150 | -40 to 150 | -40 to 150 | -40 to 150 | °C | |
Recommended preload for dynamic operation | 15 | 15 | 15 | 15 | MPa | |
Maximum preload for constant force | 30 | 30 | 30 | 30 | MPa | |
Recommended electronics | E-610, E-617, E-831 | E-610, E-617, E-831 | E-610, E-617, E-831 | E-610, E-617, E-831 |
Standard connections: PL0xx.31: PTFE-insulated stranded wires, UHV compatible, 100 mm, AWG 32, Ø 0.49 mm; PL0xx.30: Solderable contacts
* At 0 to 100 V. The values refer to the unattached component and can be lower when glued on.
** At 0 to 100 V
*** Measured at 1 Vpp, 1 kHz, RT
**** Measured at 1 Vpp, no load, unclamped. The value is halved for unilateral clamping. Depending on the installation situation, the lateral resonant frequencies can be lower than the axial resonant frequencies.
Ask about custom designs!
Downloads
Datasheet
Datasheet PL0xx
Material Data
Documentation
User Manual PZ265
PL022 / PL033 / PL055 / PL088 PICMA® Chip miniature multilayer piezo actuators; PD161 Round PICMA® Chip miniature multilayer piezo actuators; PD050 / PD080 / PD120 / PD150 / PD160 Round PICMA® Chip miniature multilayer piezo actuators with inner hole
Short Instructions PZ264EK
PICMA® Multilayer Piezo Actuators: P-08x, P-88x, PD0xx, PD410, PL0xx, PL1xx, PICMA® Stack, PICMA® Chip, PICMA® Bender
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

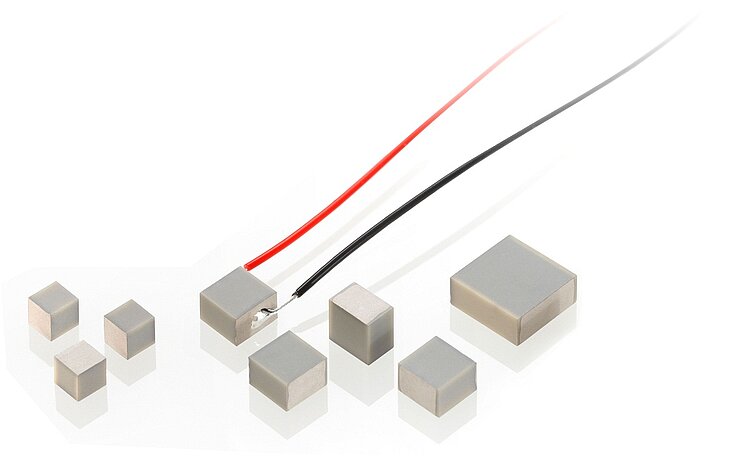

PICMA® Chip actuators
