PD050.31
Round PICMA® Chip miniature piezo actuator with inner hole, 2.0 µm travel range, OD 5 mm × ID 2.5 mm × TH 2.5 mm, stranded wires
PD0xx • PD1xx Round PICMA® Chip Actuators
Miniature Multilayer Piezo Actuators with and without Inner Hole
- Superior lifetime
- Ultracompact: From 5 mm Ø
- Ideal for dynamic operation
- µs response time
- Subnanometer resolution
- UHV-compatible to 10-9 hPa

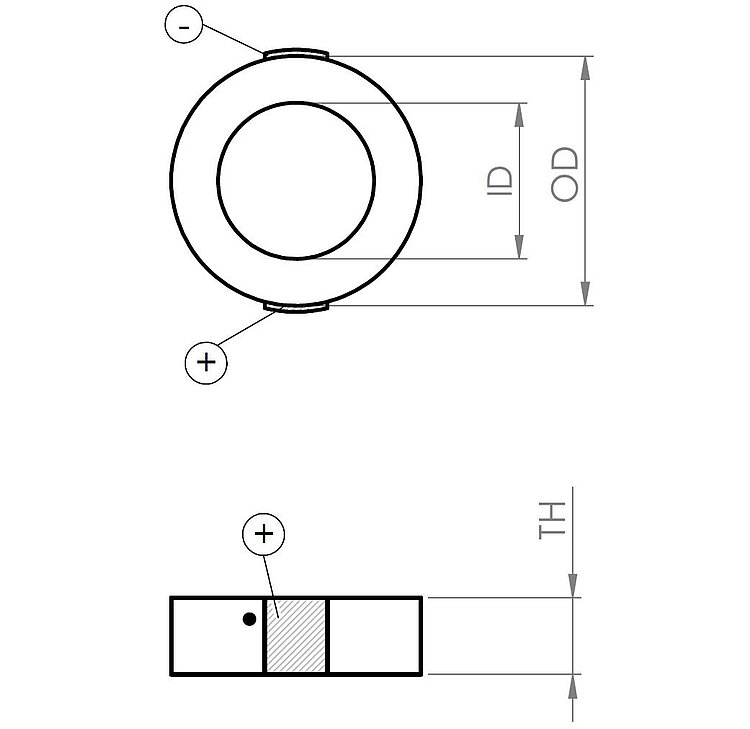

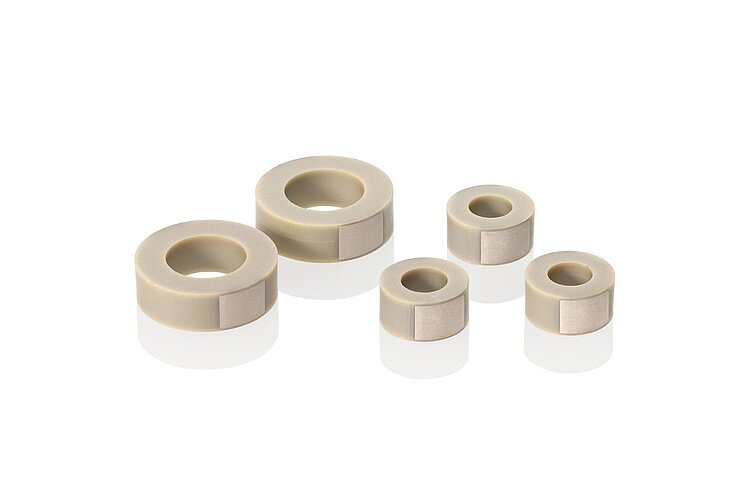

Round PICMA® Chip miniature piezo actuator, lapped end surfaces. OD, ID, TH, see data table.

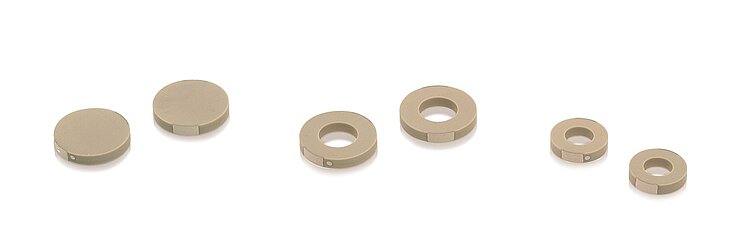

PICMA® Chip rings and disks are available with diameters up to 16 mm.

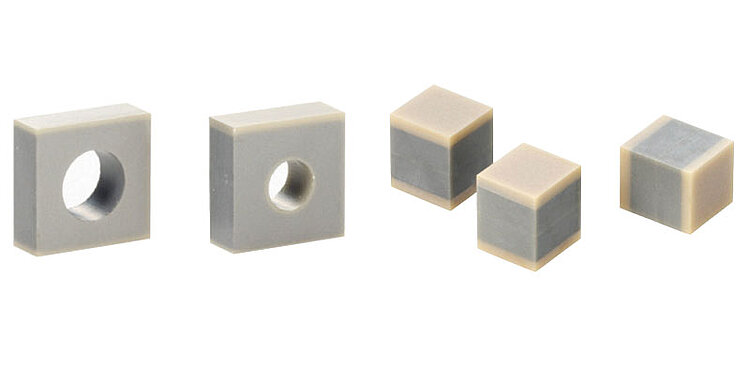

On request, PICMA® Chip piezo actuators can be manufactured with all-ceramic insulated inner hole (left) or with precision-ground ceramic end plates (right).
PD0xx • PD1xx Round PICMA® Chip Actuators
Description du produit
Spécifications
Téléchargements
Devis / Commande
Piezo linear actuator with PICMA® multilayer technology
Operating voltage -20 to 100 V. Ceramic insulation, polymer free. Humidity resistance. UHV-compatible to 10-9 hPa, no outgassing, high bakeout temperature. Flexible thanks to numerous designs. Versions with rectangular, round or annular cross section.
Customized versions and other specifications on request
- PTFE-insulated wire leads
- Variety of shapes
- Inner hole
- Precision-ground ceramic end plates
Fields of application
Industry and research. For laser tuning, microdispensing, life sciences.
Specifications
Datasheet
Datasheet PD0xx
Version / Date
2019-01-15
pdf - 1 MB
Version / Date
2019-01-15
pdf - 1 MB
Version / Date
2019-01-15
pdf - 1 MB
Version / Date
2019-04-01
pdf - 1 MB
Specifications
PD050.3x | PD080.3x | PD120.3x | PD150.3x | PD160.3x | PD161.3x | Unit | Tolerance | |
|---|---|---|---|---|---|---|---|---|
Outer diameter (OD) | 5 ±0.2 | 8 ±0.3 | 12 ±0.4 | 15 ±0.3 | 16 ±0.5 | 16 ±0.5 | mm | |
Inner diameter (ID) | 2.5 ±0.15 | 4.5 ±0.15 | 6 ±0.2 | 9 ±0.15 | 8 ±0.25 | – | mm | |
Height (TH) | 2.5 ±0.05 | 2.5 ±0.05 | 2.5 ±0.05 | 2 ±0.05 | 2.5 ±0.05 | 2.5 ±0.05 | mm | |
Travel range* | 1.8 | 2 | 2 | 1.8 | 2 | 2.3 | µm | ±20 % |
Blocking force** | >400 | >1000 | >2500 | >3300 | >4400 | >6000 | N | |
Electrical capacitance*** | 110 | 300 | 900 | 1000 | 1700 | 2400 | nF | ±20 % |
Axial resonant frequency**** | >500 | >500 | >500 | >600 | >500 | >500 | kHz | |
Piezo ceramic | PIC252 | PIC252 | PIC252 | PIC252 | PIC252 | PIC252 | ||
Operating voltage range | -20 to 100 | -20 to 100 | -20 to 100 | -20 to 100 | -20 to 100 | -20 to 100 | V | |
Operating temperature range | -40 to 150 | -40 to 150 | -40 to 150 | -40 to 150 | -40 to 150 | -40 to 150 | °C | |
Recommended preload for dynamic operation | 15 | 15 | 15 | 15 | 15 | 15 | MPa | |
Maximum preload for constant force | 30 | 30 | 30 | 30 | 30 | 30 | MPa | |
Recommended electronics | E-610, E-617, E-831, E-836 | E-610, E-617, E-831, E-836 | E-610, E-617, E-831, E-836 | E-610, E-617, E-831, E-836 | E-610, E-617, E-831, E-836 | E-610, E-617, E-831, E-836 |
Standard connections: PDxxx.31: PTFE-insulated stranded wires, UHV compatible, 100 mm, AWG 32, Ø 0.49 mm; PDxxx.30: Solderable contacts
* At 0 to 100 V. The values refer to the unattached component and can be lower when glued on.
** At 0 to 100 V
*** Measured at 1 Vpp, 1 kHz, RT
**** Measured at 1 Vpp, unloaded, unclamped. The value is halved for unilateral clamping. Depending on the installation situation, the lateral resonant frequencies can be lower than the axial resonant frequencies.
Sonderausführungen auf Anfrage.
Downloads
Datasheet
Datasheet
Datasheet PD0xx
Version / Date
2019-01-15
pdf - 1 MB
Version / Date
2019-01-15
pdf - 1 MB
Version / Date
2019-01-15
pdf - 1 MB
Version / Date
2019-04-01
pdf - 1 MB
Documentation
Documentation
User Manual PZ265
PL022 / PL033 / PL055 / PL088 PICMA® Chip miniature multilayer piezo actuators; PD161 Round PICMA® Chip miniature multilayer piezo actuators; PD050 / PD080 / PD120 / PD150 / PD160 Round PICMA® Chip miniature multilayer piezo actuators with inner hole
Version / Date
1.1.0 2021-09-27
pdf - 2 MB
Version / Date
1.1.0 2021-09-27
pdf - 2 MB
Documentation
Short Instructions PZ264EK
PICMA® Multilayer Piezo Actuators: P-08x, P-88x, PD0xx, PD410, PL0xx, PL1xx, PICMA® Stack, PICMA® Chip, PICMA® Bender
Version / Date
3.1.0 09/2024
pdf - 136 KB
Version / Date
3.1.0 09/2024
pdf - 138 KB
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
PICMA® Chip actuators with PTFE-insulated stranded wires
PD080.31
Round PICMA® Chip miniature piezo actuator with inner hole, 2.0 µm travel range, OD 8 mm × ID 4.5 mm × TH 2.5 mm, stranded wires
PD120.31
Round PICMA® Chip miniature piezo actuator with inner hole, 2.0 µm travel range, OD 12 mm × ID 6 mm × TH 2.5 mm, stranded wires
PD150.31
Round PICMA® Chip miniature piezo actuator with inner hole, 1.8 µm travel range, OD 15 mm × ID 9 mm × TH 2 mm, stranded wires
PD160.31
Round PICMA® Chip miniature piezo actuator with inner hole, 2.0 µm travel range, OD 16 mm × ID 8 mm × TH 2.5 mm, stranded wires
PD161.31
Round PICMA® Chip miniature piezo actuator, 2.3 µm travel range, OD 16 mm × TH 2.5 mm, stranded wires
PICMA® Stack actuators with solderable contacts
PD050.30
Round PICMA® Chip miniature piezo actuator with inner hole, 2.0 µm travel range, OD 5 mm × ID 2.5 mm × TH 2.5 mm
PD080.30
Round PICMA® Chip miniature piezo actuator with inner hole, 2.0 µm travel range, OD 8 mm × ID 4.5 mm × TH 2.5 mm
PD120.30
Round PICMA® Chip miniature piezo actuator with inner hole, 2.0 µm travel range, OD 12 mm × ID 6 mm × TH 2.5 mm
PD150.30
Round PICMA® Chip miniature piezo actuator with inner hole, 1.8 µm travel range, OD 15 mm × ID 9 mm × TH 2 mm
PD160.30
Round PICMA® Chip miniature piezo actuator with inner hole, 2.0 µm travel range, OD 16 mm × ID 8 mm × TH 2.5 mm
PD161.30
Round PICMA® Chip miniature piezo actuator, 2.3 µm travel range, OD 16 mm × TH 2.5 mm
