- Case with mechanical adapters for electrical insulation, simple integration and for protecting the actuator from ambient conditions
- Mechanical preload allows dynamic operation
- Flexure guides for straight motion
- Mechanical lever amplification integrated into the flexure guide for large travel ranges
- Strain gauge sensors (SGS) for repeatabilities down to a few nanometers
Applications
Mechanical integration of piezo actuators facilitates their application. To avoid pull forces at the piezo element, which necessarily occur in dynamic applications due to the inertia of the moving load, the piezo element must be provided with a mechanical preload. This can be done in mechanical cases or by means of flexure joints. The latter additionally guide or deflect the direction of motion or increase the travel range through lever amplification. PI's preloaded integrated piezo actuators offer an integration level between the pure piezo element and the piezo positioning system for simple positioning tasks.
Contactez un ingénieur!
Quickly receive an answer to your question by email or phone from a local PI sales engineer.
PiezoMove® Lever-Amplified Actuators
Guided Actuators with Travel Ranges of up to 2 mm
Guided and preloaded multilayer piezo actuators with lever amplification are used for valves, pumps, micro- and nanoliter dosing, active vibration isolation, sample handling, and imprint technologies in microfluidics, biotechnology, medical technology, mechatronics, adaptive systems technology, laser technology, and metrology.
Compact Actuators
Preloaded PICMA® Piezo Linear Actuators
Highly dynamic applications that simultaneously have high precision and force generation requirements can be found, among others, in precision mechanical engineering, material processing, material forming, and in active compensation of vibrations. Designs for vacuums down to 10-9 hPa and for particularly high or low operating temperatures are available.
High-Load Actuators
Preloaded Compact PICA Piezo Linear Actuators
Highly dynamic applications that simultaneously have high precision and force generation requirements can be found, among others, in precision mechanical engineering, material processing, material forming, and in active compensation of vibrations. Designs for vacuums down to 10-9 hPa and for particularly high or low operating temperatures are available.

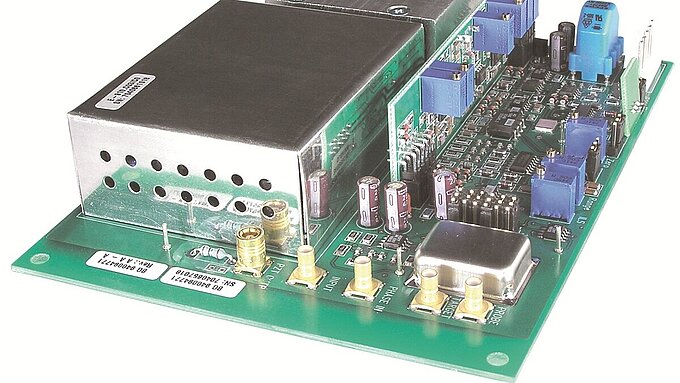

Motion Controllers and Amplifiers
PI offers a wide range of options for controlling integrated piezo actuators from cased digital motion controllers to OEM PC boards:
| Which Drive Electronics is Suitable? | PiezoMove® / PICMA® without Sensors U <120 V | PICA without Sensors U <1000 V | PiezoMove® / PICMA® with Strain Gauge Sensors | PICA with Strain Gauge Sensors |
|---|---|---|---|---|
| Mid-range dynamics, mid-range loads | >> E-836 >> E-610 | E-420 | >> E-610 >> E-625 | E-420 |
Mid-range dynamics, | >> E-831 | >> E-462 | - | - |
| Fast switching applications | >> E-617 >> E-618 >> E-506 | >> E-482 | >> E-500 | >> E-481 |
| High loads (>100 kg) | - | E-420 | - | E-420 |
Drivers and Controllers for PICMA® Stack/Chip Multilayer Actuators
Piezo amplifiers for >> PICMA® Multilayer Piezo Actuators offer an output voltage of up to 130 V.
Amplifiers with high output current allow dynamic operation of the actuators and precise positioning while requiring low power.

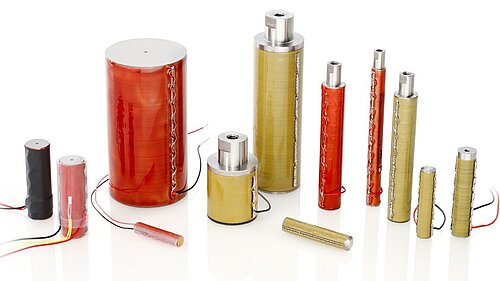

Drivers and Controllers for PICA Stack/Power/Thru Actuators
Piezo amplifiers for >> PICA Actuators offer a voltage range of up to 1100 V, which is available as unipolar or bipolar voltage. Amplifiers with high output current allow dynamic operation of the actuators and precise positioning while requiring low power.
