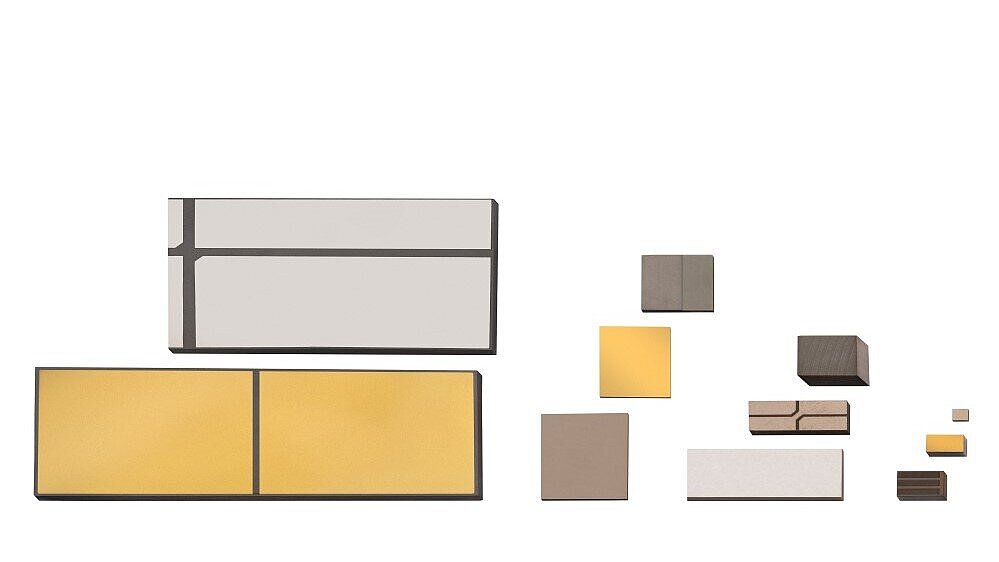

Piezoceramic Plates & Blocks

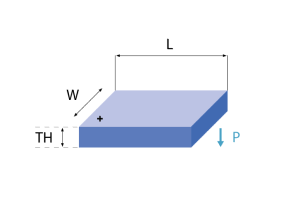

L       Length
W      Width
TH     Thickness
P       Polarization direction

Length L
1 to 80 mm

Width W
1 to 60 mm

Thickness TH
0.1 to 30 mm

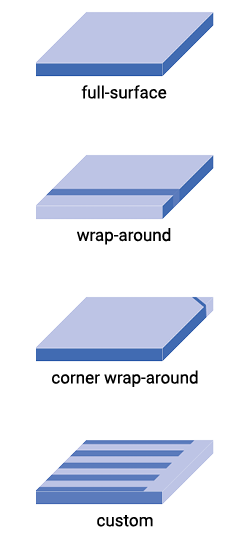

Electrodes
Thick layer (silver), electroless nickel, thin layer (CuNi, Au)

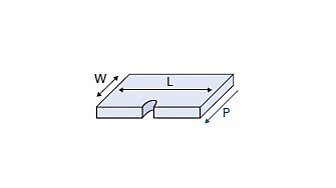

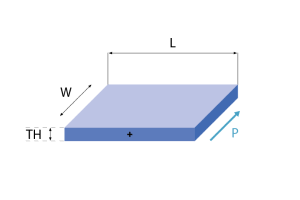

L       Length
W      Width
P       Polarization direction

Length L
max. 75 mm

Width W
max. 25 mm

Thickness TH
0.2 to 10 mm

Demandez une offre sans engagement en fonction des quantités et des dates de livraison souhaitées.

Datasheet

Version / Date

2024-08

pdf - 77 KB

Version / Date

2024-08

pdf - 79 KB

Documentation

Handling and Electrical Contacting of Piezo Components

Version / Date

2019-02-12

pdf - 718 KB

Version / Date

2019-02-12

pdf - 725 KB

Plates
