Piezoceramic Disks, Rods & Cylinders

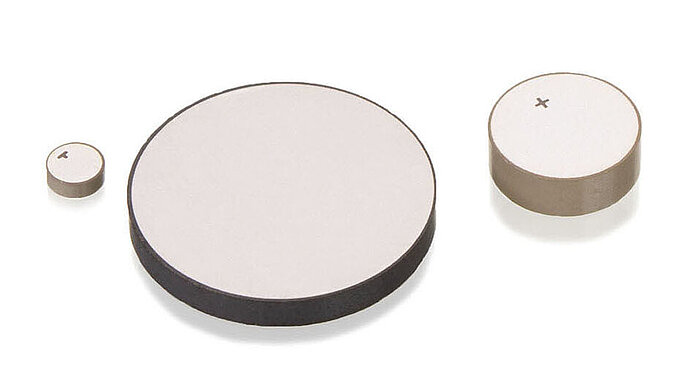

PRYY Piezoelectric Disks

  • Piezo material matched to the application
  • Full-surface contact electrodes

Customized Disks without Special Electrodes

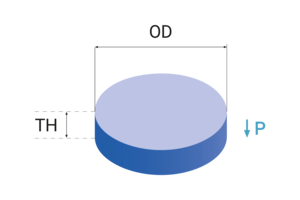

OD     Outer diameter

TH      Thickness

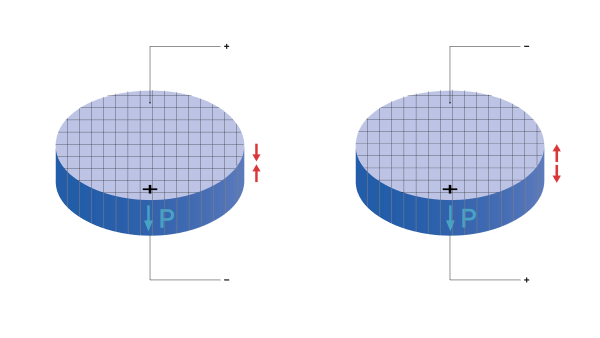

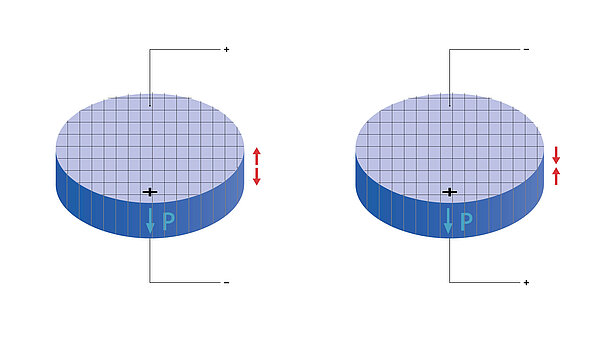

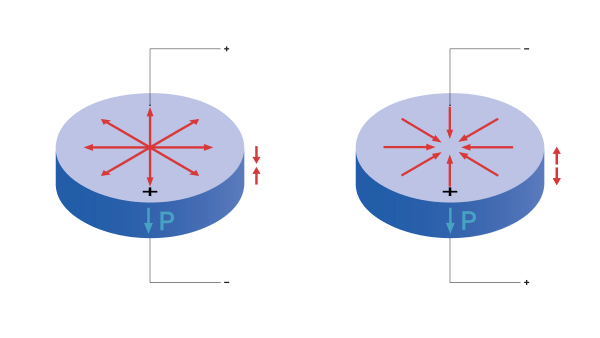

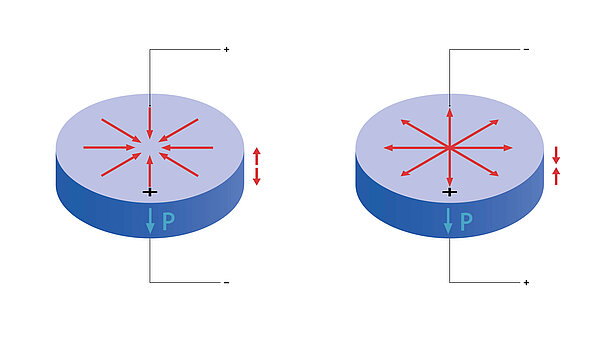

P        Polarization direction

Outer diameter OD
2 to 80 mm
Thickness TH
0.15 to 30 mm
Electrodes
Thick layer (silver), electroless nickel, thin layer (CuNi, Au, etc.)

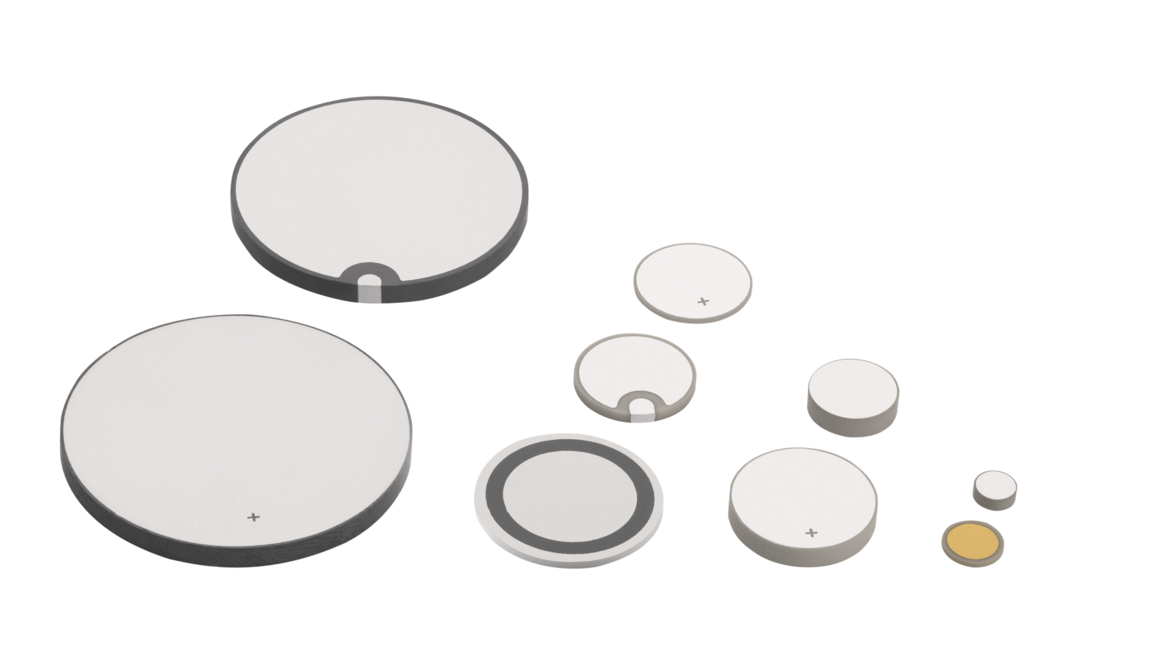

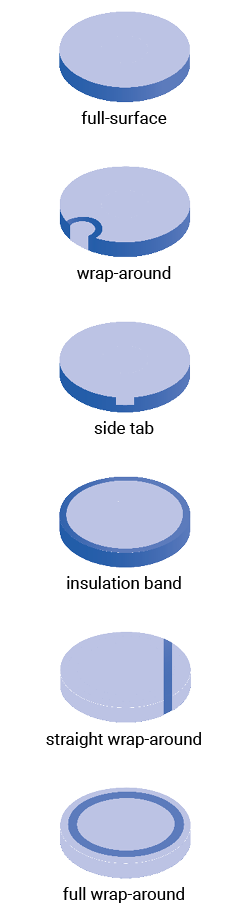

Customized Disks with Special Electrodes (Wrap-Around Contacts)

OD     Outer diameter
TH      Thickness

Wrap-around electrodes allow you to establish electrical contacting at a favorable position within the mechanical assembly.





Demander une offre de prix

Demandez une offre sans engagement en fonction des quantités et des dates de livraison souhaitées.

Downloads

Datasheet

Material Data

Version / Date
2024-08
pdf - 77 KB
Version / Date
2024-08
pdf - 79 KB
Documentation

User Manual A000T0047

Handling and Electrical Contacting of Piezo Components

Version / Date
2019-02-12
pdf - 718 KB
Version / Date
2019-02-12
pdf - 725 KB
