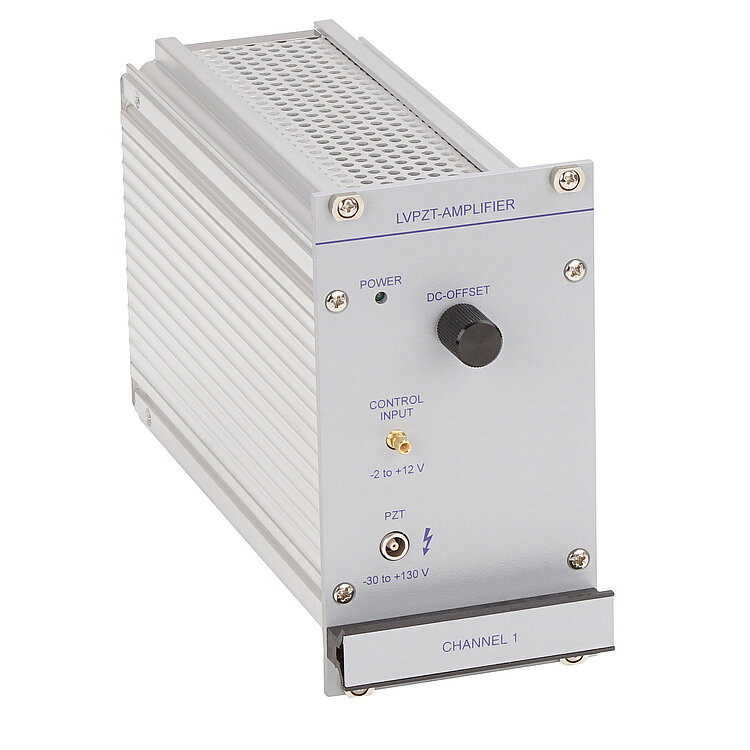

E-504 Piezo Amplifier Module

High Power due to Energy Recovery, E-500 Piezo Controller System

Peak power 280 W
High continuous power of 100 W
Output voltage range -30 to 130 V
Module for E-500 piezo controller rack
Position control (optional)
Interface / display modules (optional)

Aller au devis / à la commande

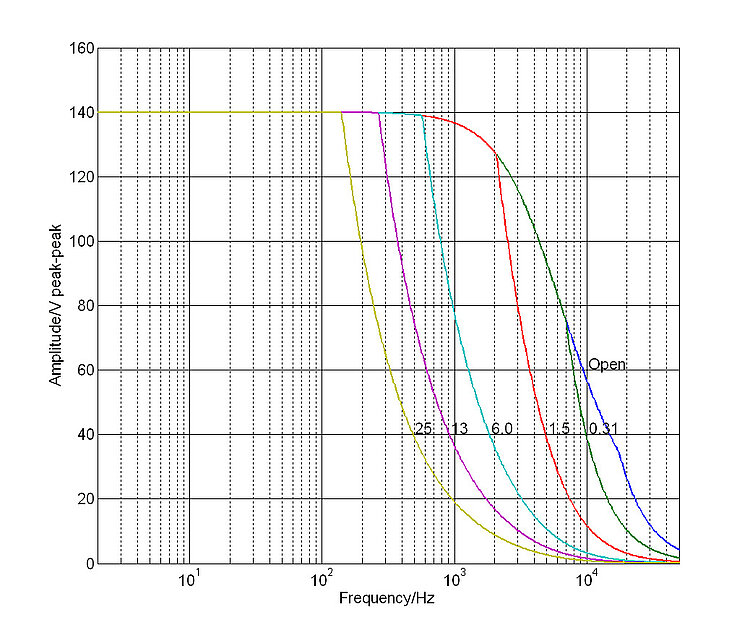

E-504: Operating limits (open loop) with various piezo loads, capacitance values in µF

Peak currents to 2000 mA. 280 W peak power, average output power up to 100 W.

Class-D switched amplifier with capacitor for energy recovery. Low influence of the application thanks to reduced heat dissipation.

The working principle of the E-504 series is particularly good for high dynamics scanning and switching applications. The E-505 is recommended for applications that require static position stability in a subnanometer range.

Industry, automation. High dynamics scanning or switching applications.

Télécharger la fiche technique Aller aux spécifications Aller au devis / à la commande

Datasheet

Version / Date

2020-10-07

pdf - 644 KB

Version / Date

2020-10-07

pdf - 650 KB

Version / Date

2020-10-07

pdf - 704 KB

Version / Date

2018-10-24

pdf - 637 KB

Télécharger

	E-504.00F	E-504.00S
Function	Power amplifier with energy recovery	Offset voltage source for tip/tilt platforms
Channels	1	1

Amplifier	E-504.00F	E-504.00S
Input voltage range	-2 to 12 V	-
Output voltage	-30 to 130 V	100 V
Peak output power (<5 ms)	280 W	280 W
Average output power	100 W at full voltage range	100 W at full voltage range
Peak current (<5 ms)	2000 mA	2000 mA
Average output current	1000 mA	1000 mA
Current limitation	Short-circuit proof	Short-circuit proof
Voltage gain	10 ±0.1	-
Amplifier bandwidth	4 kHz	4 kHz
Ripple, noise	5 mV_rms / <10 kHz, 20 mV_pp / <10 kHz <30 mV_rms / <100 kHz, <100 mV_pp / 100 kHz <150 mV_pp / 20 MHz	<30 mV_rms / <100 kHz, <100 mV_pp / 100 kHz <150 mV_pp / 20 MHz
Capacitive base load (internal)	1.5 µF	1.5 µF
Recommended piezo load	1µF to 100µF	1µF to 100µF
Amplifier resolution	10 mV	-
Amplifier classification	Class D, switched 100 kHz	Class D, switched 100 kHz
Output impedance	0.5 Ω/1mH/1.5µF	0.5 Ω/1mH/1.5µF
Input impedance	100 kΩ	-

Interfaces and operation	E-504.00F	E-504.00S
Piezo connection (voltage socket)	LEMO ERA.00.250.CTL	LEMO ERA.00.250.CTL
Analog input	SMB	-
DC offset setting	10-turn potentiometer, adds 0 to 10 V to the input voltage	-
Display and indicators	Power LED	Power LED

Miscellaneous	E-504.00F	E-504.00S
Operating temperature range	5 to 50 °C	5 to 50 °C
Dimensions	14 HP / 3 RU	14 HP / 3 RU
Mass	0.9 kg	0.9 kg
Operating voltage	E-500 system	E-500 system

Télécharger la fiche technique Aller à la zone de téléchargement Aller au devis / à la commande

Datasheet

Version / Date

2020-10-07

pdf - 644 KB

Version / Date

2020-10-07

pdf - 650 KB

Version / Date

2020-10-07

pdf - 704 KB

Version / Date

2018-10-24

pdf - 637 KB

Télécharger

Documentation

Housed Analog Piezo Electronics E-4xx, E-5xx, E-6xx, E-8xx

Version / Date

1.2.0 03/2024

pdf - 754 KB

Version / Date

1.2.0 03/2024

pdf - 791 KB

Télécharger

Documentation

E-500 / E-501 Series Modular Piezo Controller: Chassis with power supply, amplifier modules (E-503, E-504, E-505, E-506, E-508), sensor and servo-control module (E-509), display and interface modules (E-515, E-517).

Version / Date

2.16.0 2024-04-26

pdf - 3 MB

Anglais

Aller au devis / à la commande

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

E-504.00F

High-power piezo amplifier module, 1 channel, 280 W peak power, 100 W continuous power, -30 to 130 V, energy recovery

Add to quote list Remove from quote list

E-504.00S

Offset voltage source for tip/tilt platforms, 1 channel, 280 W peak power, 100 W continuous power, 100 V fixed voltage, energy recovery

Add to quote list Remove from quote list
