PD410.10
Round PICMA® multilayer bending actuator; PICMA® Bender piezo actuator drive; ±240 µm travel range (open loop); vacuum-compatible to 10⁻⁹ hPa; solderable contacts

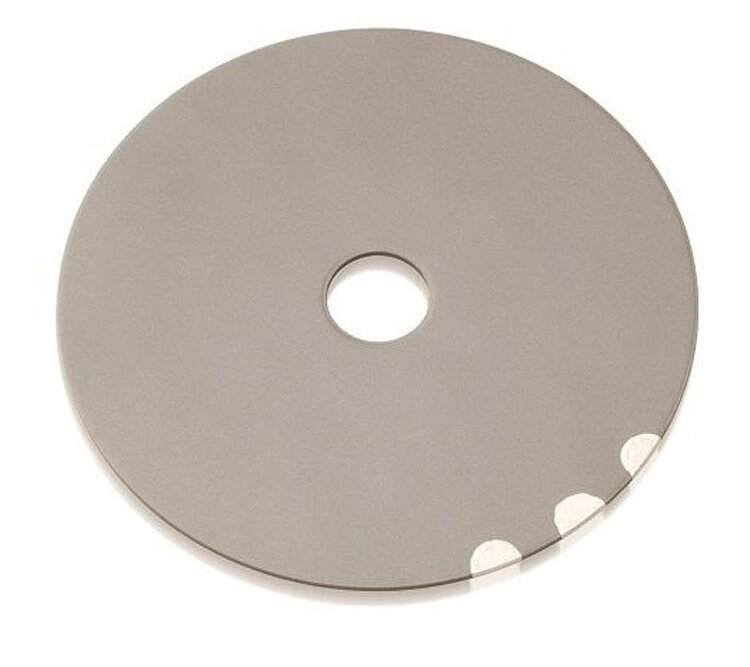

PD410 Round PICMA® Multilayer Bender Actuators
All-Ceramic Bending Actuators with High Displacement

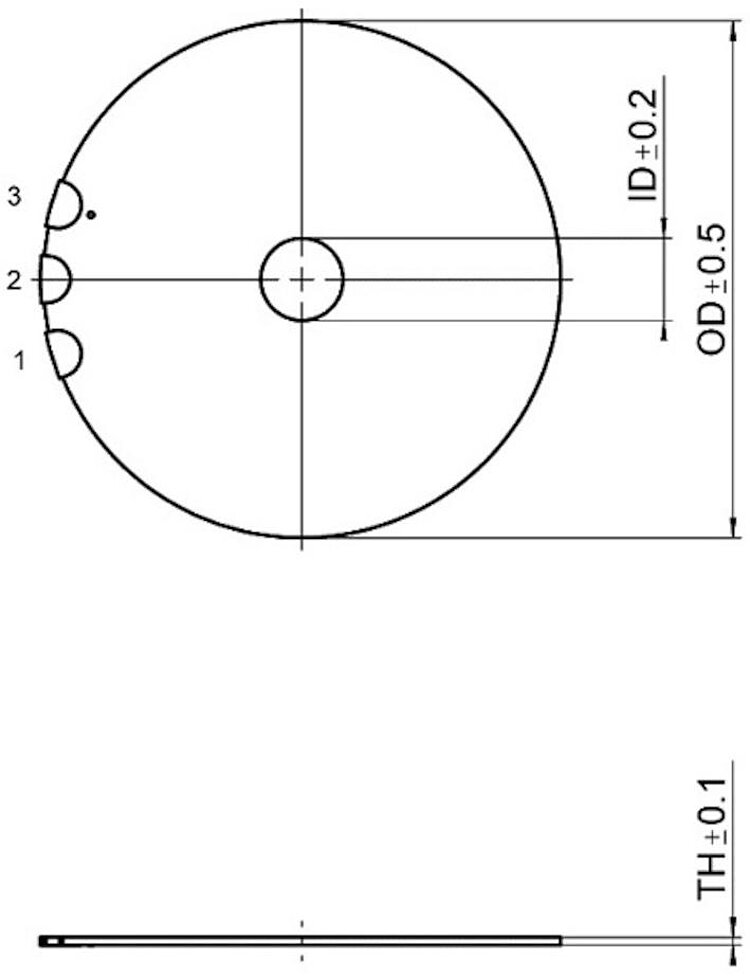

PD410 round PICMA® Bender Piezo Actuator, dimensions in mm. OD=44 mm, ID=7 mm, TH=0.65 mm.
PD410 Round PICMA® Multilayer Bender Actuators
Description du produit
Spécifications
Téléchargements
Devis / Commande
PICMA® multilayer bender elements with high reliability
Operating voltage 0 to 60 V. Bidirectional displacement, bimorph design. Ceramic insulation, polymer free. UHV-compatible to 10-9 hPa, no outgassing, high bakeout temperature. Reliable even under extreme conditions.
Fields of application
Industry and research, vacuum. For medical technology, laser technology, sensor technology, automation tasks, pneumatic valves.
Specifications
Datasheet
Datasheet PD410
Version / Date
2023-12-13
pdf - 228 KB
Version / Date
2023-12-13
pdf - 233 KB
Specifications
| Motion | PD410.10 | PD410.11 | Tolerance |
|---|---|---|---|
| Displacement | ± 240 µm | ± 240 µm | ±20 % |
| Drive Properties | PD410.10 | PD410.11 | Tolerance |
| Actuator type | Bending actuator | Bending actuator | |
| Drive type | PICMA® Bender | PICMA® Bender | |
| Operating voltage | 0 to 60 (±30) V | 0 to 60 (±30) V | |
| Electrical capacitance | 2 × 9.5 µF | 2 × 9.5 µF | ±20 % |
| Mechanical Properties | PD410.10 | PD410.11 | Tolerance |
| Resonant frequency, unloaded | 1000 Hz | 1000 Hz | ±20 % |
| Blocking force | ± 16 N | ± 16 N | ±20 % |
| Piezo material | PIC252 | PIC252 | |
| Miscellaneous | PD410.10 | PD410.11 | Tolerance |
| Operating temperature range | -20 to 150 °C | -20 to 150 °C | |
| Vacuum class | 10⁻⁹ hPa | 10⁻⁹ hPa | |
| Connector | Solderable contacts | Stranded wires, PTFE isolated, AWG 32, Ø 0.49 mm | |

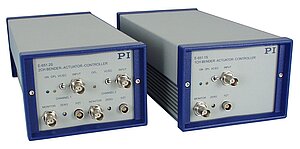

| Recommended controllers / drivers | E-650, E-651 • E-614 | E-650, E-651 • E-614 | |
| Cable length | 0.1 m |
Electrical capacitance: Measured at 1 Vpp, 1 kHz, RT.
Resonant frequency, unloaded: Measured at 1 Vpp restraint with rotatable mounting on the outer circumference.
Recommended mounting: Epoxy resin adhesive.
All specifications depend on actual clamping conditions and mechanical load applied.
Custom designs or different specifications on request.
Downloads
Datasheet
Datasheet
Datasheet PD410
Version / Date
2023-12-13
pdf - 228 KB
Version / Date
2023-12-13
pdf - 233 KB
Documentation
Documentation
Short Instructions PZ264EK
PICMA® Multilayer Piezo Actuators: P-08x, P-88x, PD0xx, PD410, PL0xx, PL1xx, PICMA® Stack, PICMA® Chip, PICMA® Bender
Version / Date
3.1.0 09/2024
pdf - 136 KB
Version / Date
3.1.0 09/2024
pdf - 138 KB
Documentation
Technical Note PD410T0001
PD410 PICMA® Circular Bender Actuators
Version / Date
2014-02-10
pdf - 392 KB
Anglais
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
PD410.11
Round PICMA® multilayer bending actuator; PICMA® Bender piezo actuator drive; ±240 µm travel range (open loop); vacuum-compatible to 10⁻⁹ hPa; connecting wires
