E-617 High-Performance Piezo Amplifier

Function

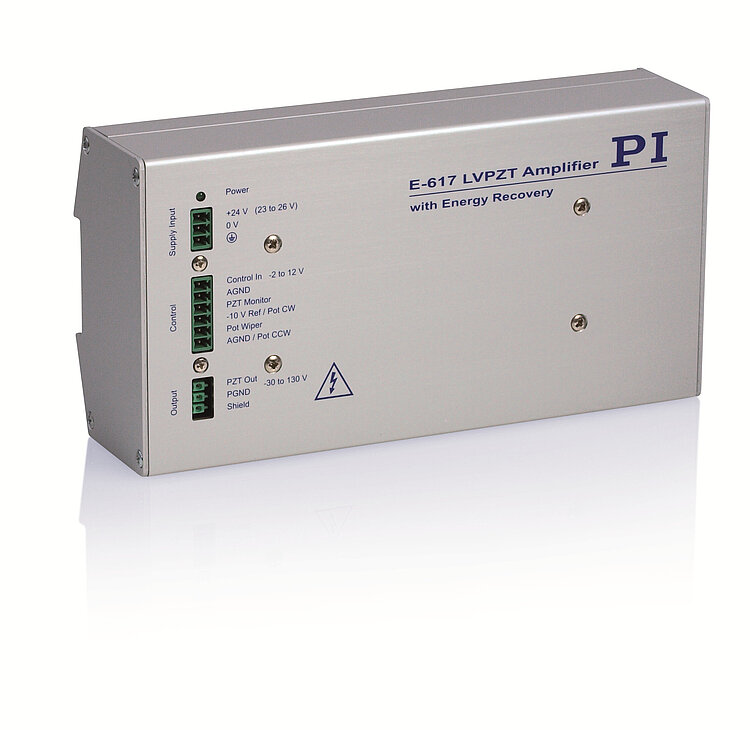

High-performance piezo amplifier for top hat rail mounting

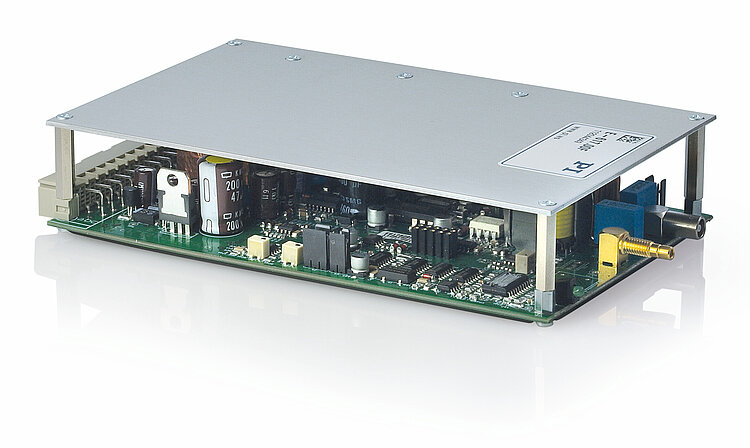

High-performance piezo amplifier, OEM module

Channels

1

1

Input voltage range

-2 to 12 V

-2 to 12 V

Output voltage

-30 to 130 V

-30 to 130 V

Peak power (<5 ms)

280 W

280 W

Average output power (>5 ms)

Equivalent to 100 W reactive power

Equivalent to 100 W reactive power

Peak current (<5 ms)

2000 mA

2000 mA

Average output current (>5 ms)

1000 mA

1000 mA

Current limitation

Short-circuit proof

Short-circuit proof

Voltage gain

10 ±0.1

10 ±0.1

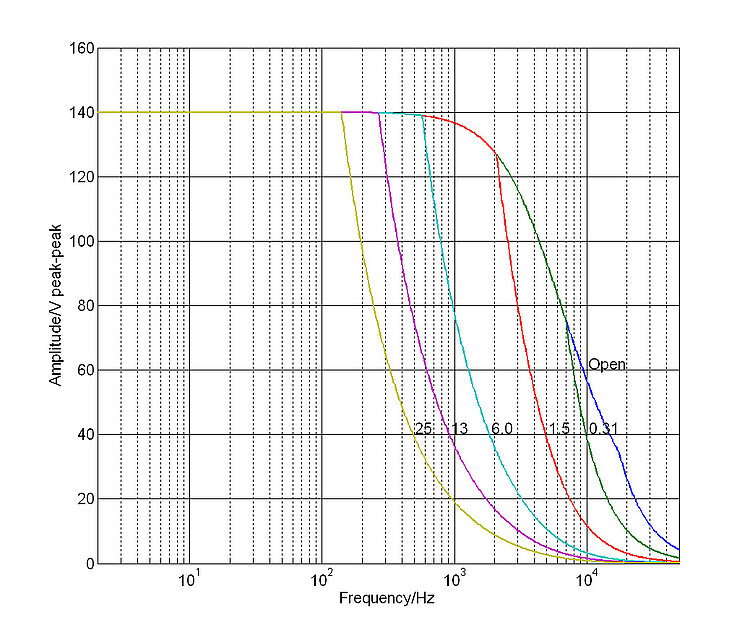

Amplifier bandwidth, small signal

3.5 kHz

3.5 kHz

Ripple, noise, 0 to 10 kHz

<2 mV_rms

<10 mV_pp

<2 mV_rms

<10 mV_pp

Capacitive base load (internal)

1.0 µF

1.0 µF

Suggested capacitive load

>3 µF

>3 µF

Output impedance

0.5 Ω

0.5 Ω

Amplifier resolution

<1 mV

<1 mV

Amplifier classification

Class D (switching amp), 100 kHz

Class D (switching amp), 100 kHz

Input impedance

100 kΩ

100 kΩ

Piezo connection (voltage socket)

Phoenix-plug connector MINI-COMBICON 3-pin MC1.5 / 3-ST-3.81

LEMO ERA.00.250.CTL (front); DIN 41612 32-pin (rear)

Analog input / control input socket

Phoenix MINI-COMBICON plug connector, 6-pin IMC1.5 / 6-ST-3.81

SMB

DC offset setting

External potentiometer (not in the scope of delivery), adds 0 to 10 V to the input voltage

External potentiometer (not in the scope of delivery), adds 0 to 10 V to the input voltage

Operating voltage

23 to 26 V DC, stabilized, on Phoenix plug MINI-COMBICON 3-pin IMC1.5 / 3-ST-3.81

23 to 26 V DC, stabilized, on 32-pin DIN 41612 connector

Max. power consumption

<30 W

<30 W

Operating temperature range

5 to 50 °C (above 40 °C, power derated)

5 to 50 °C (above 40 °C, power derated)

Dimensions

205 mm × 105 mm × 60 mm

7 HP / 3 RU

Mass

1 kg

0.35 kg
