E-481 PICA Piezo High-Power Amplifier/Controller
2000 W and high efficiency due to energy recovery
- Peak power 2000 W
- Integrated energy recovery
- Output voltage 0 to ±1100 V or bipolar
- Overheat protection for piezo actuators with temperature sensor
- Position control (optional)
- Interface / display modules (optional)
PICA high-performance piezo amplifier

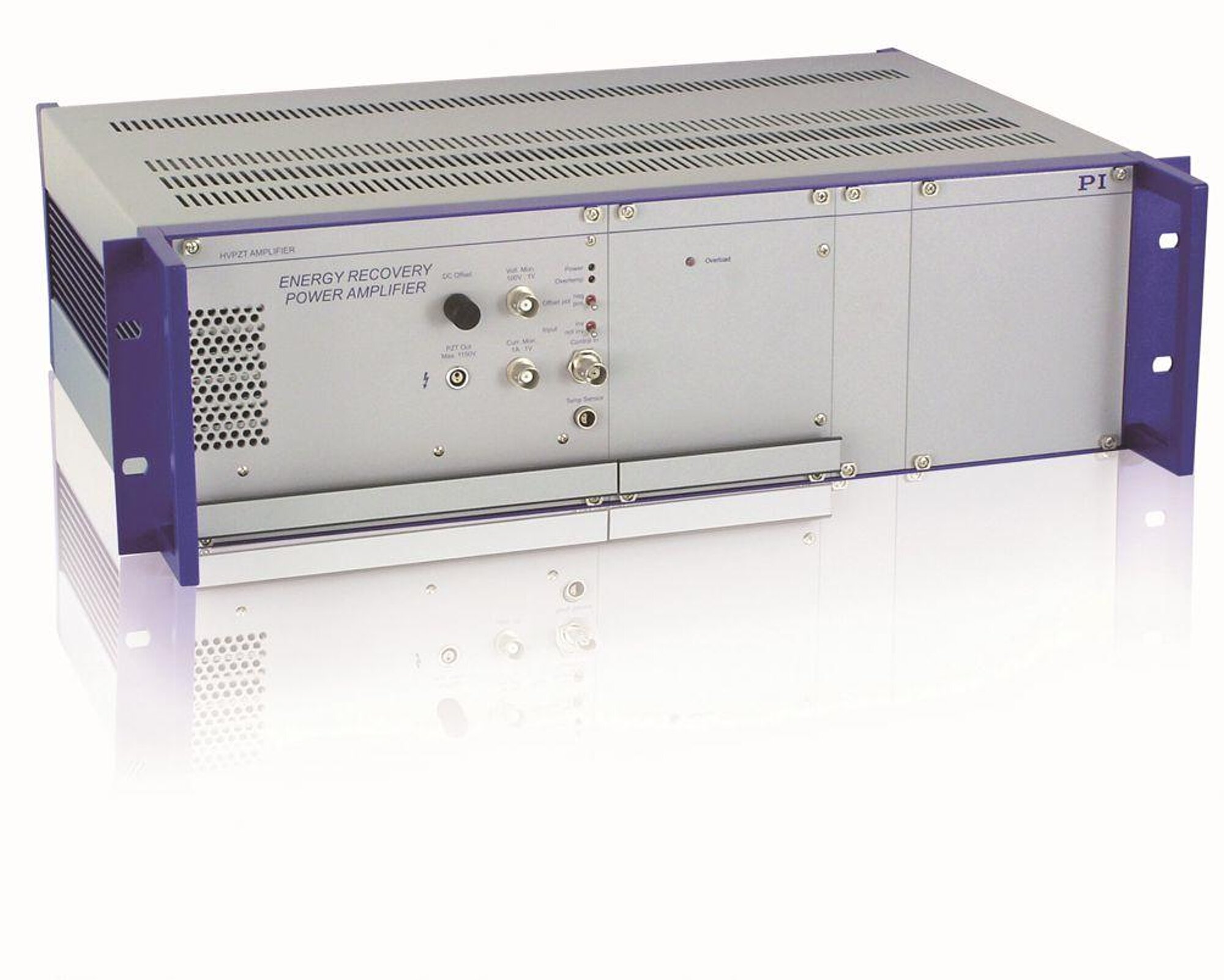

19-inch benchtop device for dynamic continuous operation of PICA piezo actuators with high electrical capacitance. Analog control. Output voltage to 1100 V, bipolar can be set.
Energy saving of up to 80 % due to switched amplifier principle
Switching amplifier with pulse width modulation (PWM) of the piezo output voltage. When the piezo actuator is discharged, a circuitry for energy recovery stores part of the returning energy in a capacitor and makes it reusable for the next charging cycle. The amplifier runs cooler and provides better stability.
Application fields
Industry and research. Active vibration absorber. Adaptive mechanics. Precision mechanics/machining. Optics. Metrology / measuring technology. Interferometry. Adaptive systems technology. Switching applications. Laser tuning. Force generation / material testing. Nanotechnology.
Specifications
Datasheet E-481
Specifications

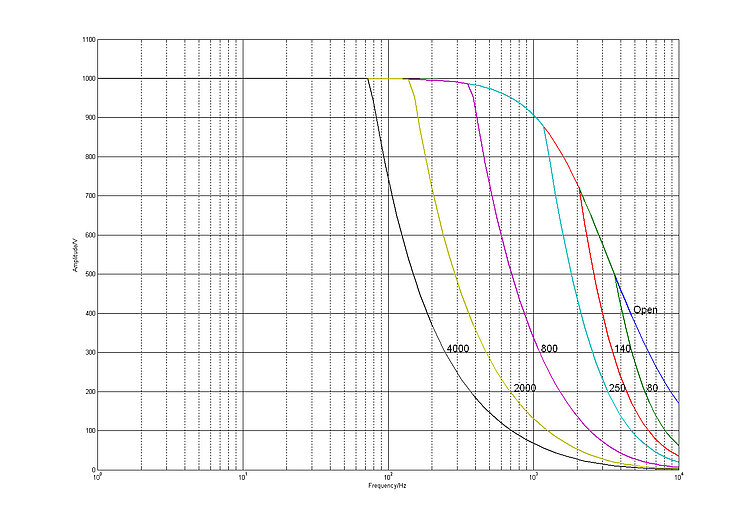

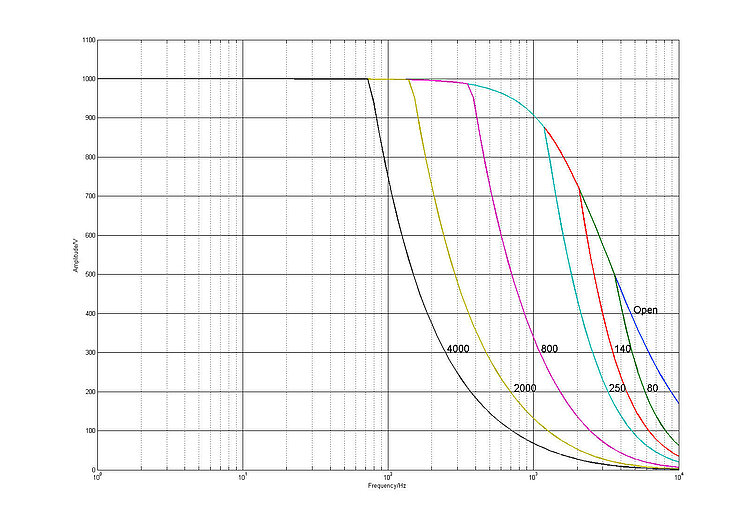

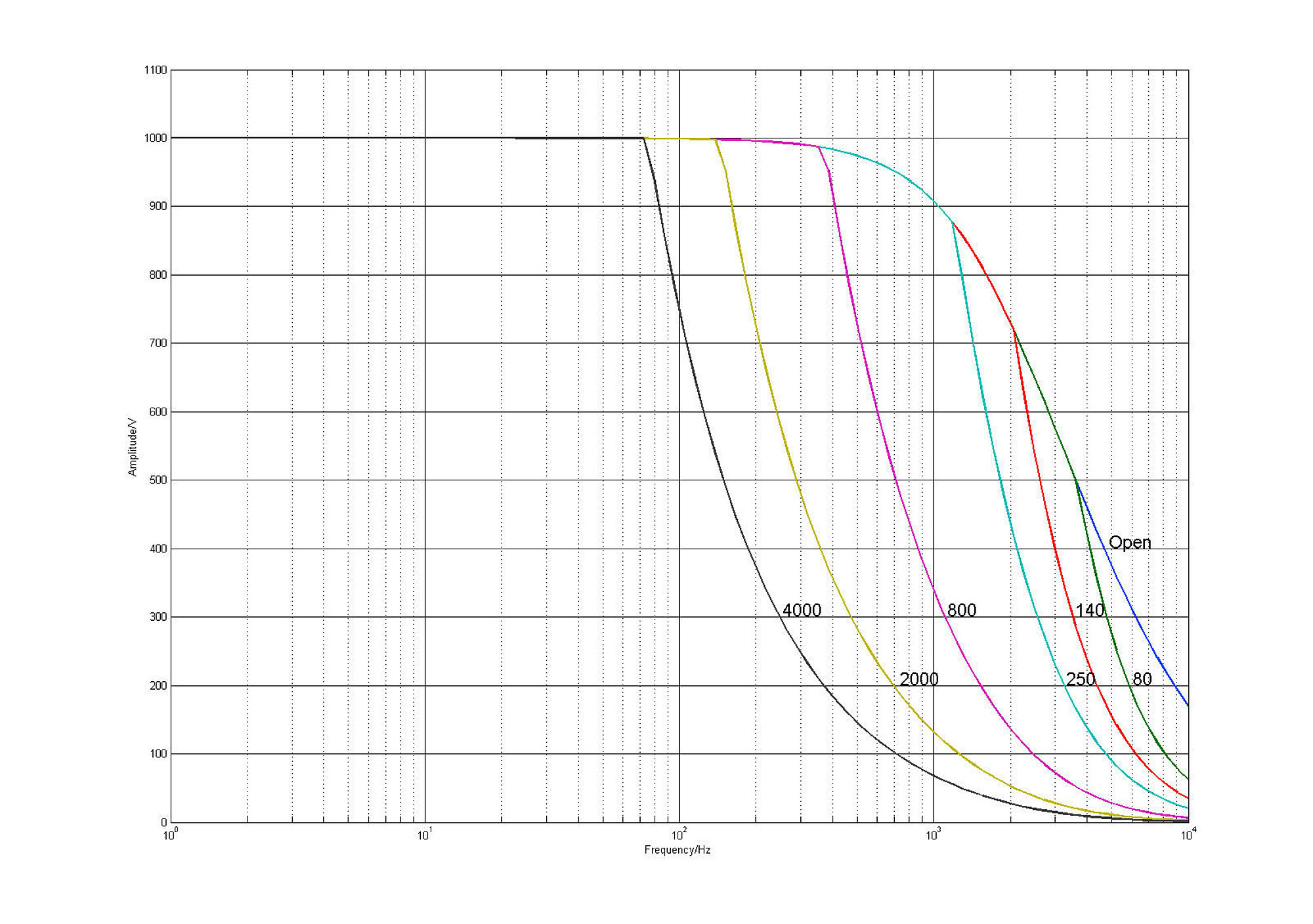

Amplifier | E-481.00 |
---|---|
Output voltage | Default: 0 to 1100 V Can be set: -260 to 780 V, -550 to 550 V, +260 to 780 V, 0 to -1100 V |
Amplifier channels | 1 |
Average output power | equivalent to 630 VA reactive power |
Peak power < 5 ms Max. output power | 2000 VA |
Average output current | >600 mA |
Peak current, <5 ms | 2000 mA |
Amplifier bandwidth, small signal | 5 kHz (660 nF), 1 kHz (3.4 µF) |
Amplifier bandwidth, large signal | 1.4 kHz (660 nF), 350 Hz (3.4 µF) |
Residual ripple, noise, 0 to 100 kHz | 150 mVrms <2000 mVpp (100 nF) |
Current limitation | Short-circuit proof |
Voltage gain | ±100 |
Input impedance | 100 kΩ |
Input voltage range | Without servo: ±1/100 of selected output voltage range With servo: 0 to 10 V |
