P-882.11

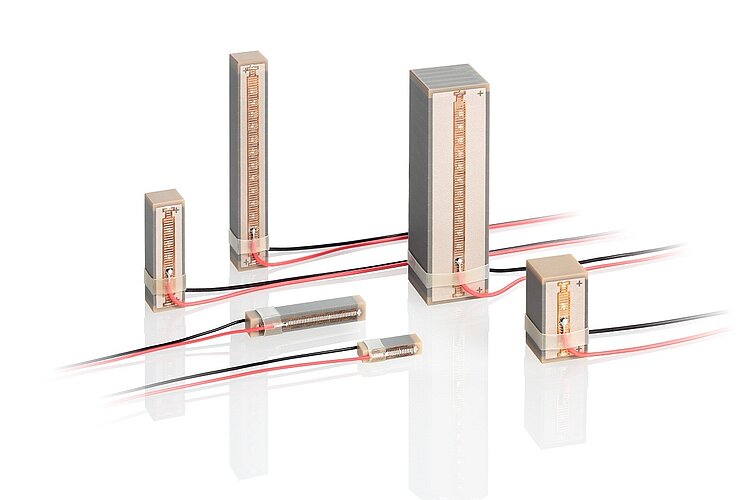

PICMA® Piezo actuator, 6.5 µm travel range, 3 mm × 2 mm × 9 mm, stranded wires
P-882 – P-888 PICMA® Stack Multilayer Piezo Actuators
Ceramic-Insulated High-Power Actuators
- Superior lifetime
- High stiffness
- Microsecond response
- Subnanometer resolution
- UHV-compatible to 10-9 hPa

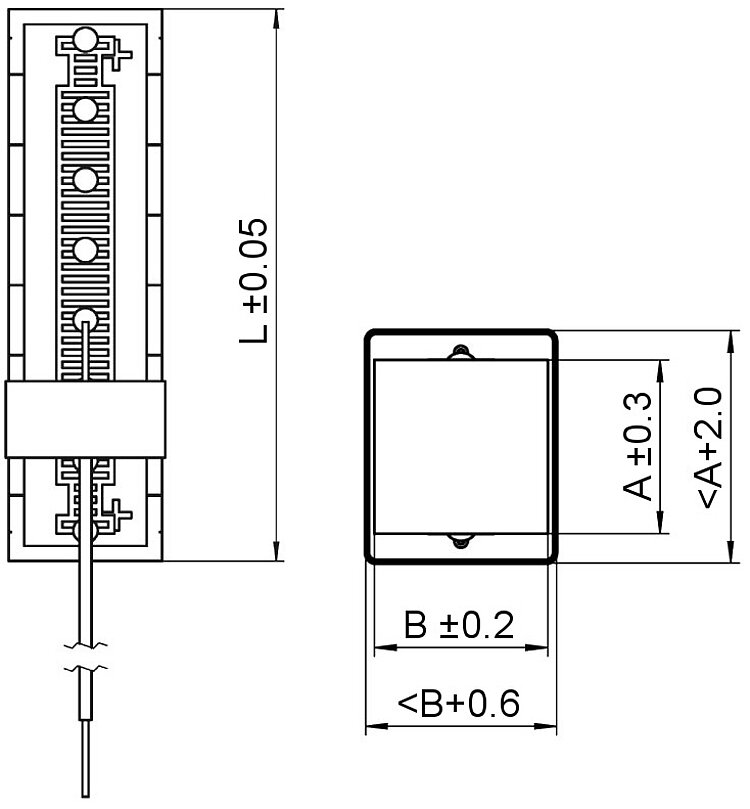

PICMA® Stack actuators, dimensions in mm. L, A, B, see data table.

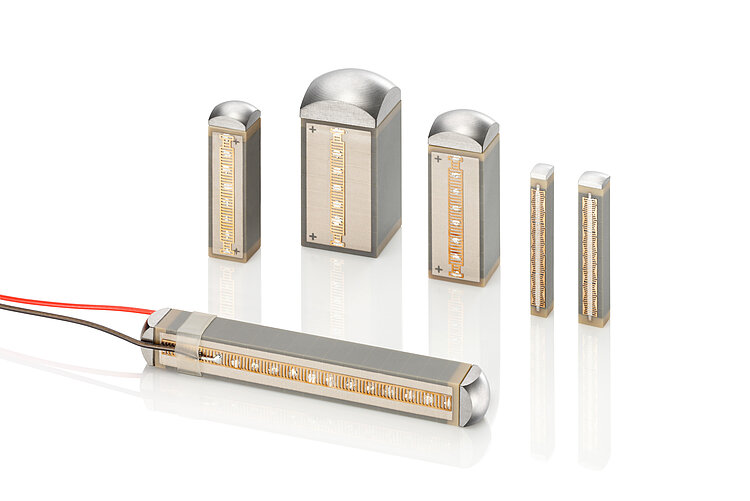

Specific tips (tips and bases) can be mounted for mechanical coupling of the actuators. Possible designs are flat or spherical tips made of metal, ceramics, glass or sapphire. Application-specific tips can be manufactured on request.
For high dynamics applications, the multilayer actuators are equipped with electrodes for especially high currents of up to 20 A. Together with a high-power piezo amplifier such as the E-618, high operating frequencies in the kHz range can be attained. The rise times for the nominal displacement are a few tens of microseconds.

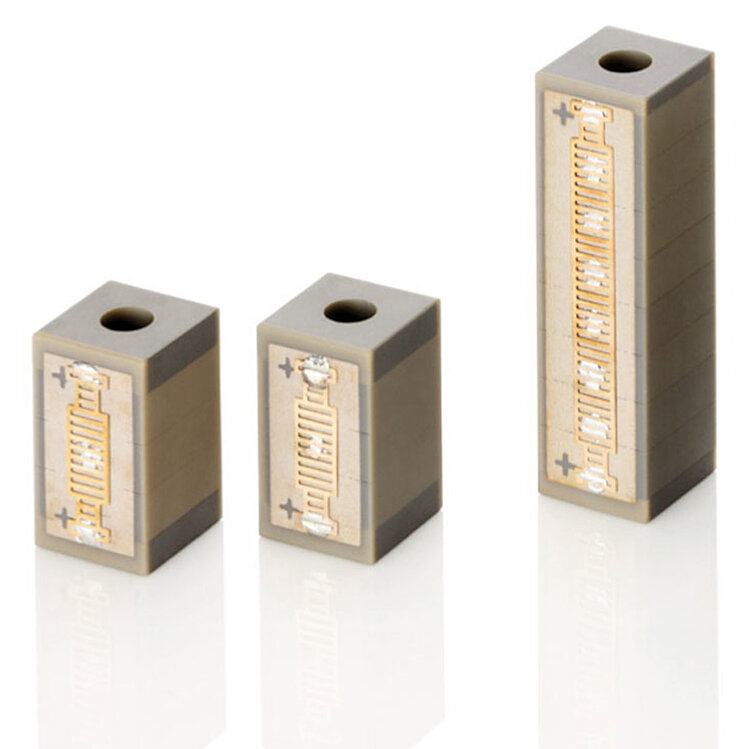

PICMA® multilayer actuators with all-ceramic insulated inner hole
P-882 – P-888 PICMA® Stack Multilayer Piezo Actuators
Description du produit
Spécifications
Téléchargements
Devis / Commande
PICMA® Stack multilayer piezo actuators with high reliability
Operating voltage -20 to 120 V. Ceramic insulation, polymer free. Humidity resistance. Excellent temperature stability. UHV-compatible to 10-9 hPa, no outgassing, high bakeout temperature. Ideal for dynamic operation. Flexible thanks to numerous designs. Encapsulated versions for operation in splash water or oil.
Custom designs with modified specifications
- For high operating temperature up to 200 °C
- Special electrodes for currents of up to 20 A
- Variable geometry: Inner hole, round, rectangular
- Ceramic or metal tips in many versions
- Applied SGS sensors for positional stability
Fields of application
Industry and research. Cryogenic environment with reduced displacement. For high-speed switching, precision positioning, active and adaptive systems.
Specifications
Datasheet
Datasheet P-882 – P-888
Version / Date
2023-12-11
pdf - 2 MB
Version / Date
2023-12-11
pdf - 2 MB
Specifications
Dimensions A × B × L | Nominal travel range | Max. travel range | Blocking force | Stiffness | Electrical capacitance | Resonant frequency | |
|---|---|---|---|---|---|---|---|
µm | µm | N | N/µm | µF | kHz | ||
P-882.11 | 3 mm × 2 mm × 9 mm | 6.5 | 8 | 190 | 24 | 0.15 | 135 |
P-882.31 | 3 mm × 2 mm × 13.5 mm | 11 | 13 | 210 | 16 | 0.27 | 90 |
P-882.51 | 3 mm × 2 mm × 18 mm | 15* | 18* | 210 | 12 | 0.31 | 70 |
P-883.11 | 3 mm × 3 mm × 9 mm | 6.5 | 8 | 290 | 36 | 0.21 | 135 |
P-883.31 | 3 mm × 3 mm × 13.5 mm | 11 | 13 | 310 | 24 | 0.35 | 90 |
P-883.51 | 3 mm × 3 mm × 18 mm | 15* | 18* | 310 | 18 | 0.48 | 70 |
P-885.11 | 5 mm × 5 mm × 9 mm | 6.5 | 8 | 800 | 100 | 0.6 | 135 |
P-885.31 | 5 mm × 5 mm × 13.5 mm | 11 | 13 | 870 | 67 | 1.1 | 90 |
P-885.51 | 5 mm × 5 mm × 18 mm | 15* | 18* | 900 | 50 | 1.5 | 70 |
P-885.91 | 5 mm × 5 mm × 36 mm | 32* | 38* | 950 | 25 | 3.1 | 40 |
P-887.31 | 7 mm × 7 mm × 13.5 mm | 11 | 13 | 1700 | 130 | 2.2 | 90 |
P-887.51 | 7 mm × 7 mm × 18 mm | 15* | 18* | 1750 | 100 | 3.1 | 70 |
P-887.91 | 7 mm × 7 mm × 36 mm | 32* | 38* | 1850 | 50 | 6.4 | 40 |
P-888.31 | 10 mm × 10 mm × 13.5 mm | 11 | 13 | 3500 | 267 | 4.3 | 90 |
P-888.51 | 10 mm × 10 mm × 18 mm | 15* | 18* | 3600 | 200 | 6.0 | 70 |
P-888.91 | 10 mm × 10 mm × 36 mm | 32* | 38* | 3800 | 100 | 13.0 | 40 |
Nominal travel range: At 0 to 100 V, tolerance ±20 %, * ±10 %.
Maximum travel range: At 0 to 120 V, tolerance ±20 %, * ±10 %.
Blocking force: At 0 to 120 V.
Electrical capacitance: Measured at 1 Vpp, 1 kHz, RT, tolerance ±20 %.
Resonant frequency: Measured at 1 Vpp, unloaded, unclamped. The value is halved for unilateral clamping, tolerance ±20 %.
Piezo ceramic type: PIC252.
Standard connections: P-882, P-883: PTFE-insulated stranded wires, UHV compatible, 100 mm, AWG 32, Ø 0.49 mm. P-885, P-887, P-888: PTFE-insulated stranded wires, UHV compatible, 100 mm, AWG 30, Ø 0.61 mm. For optional solderable contacts without stranded wires, change the last digit of the product number to 0 (e.g., P-882.10).
Operating voltage range: -20 to 120 V.
Operating temperature range: -40 to 150 °C.
Recommended preload for dynamic operation: 15 MPa.
Maximum preload for constant force: 30 MPa.
Custom designs or different specifications on request.
