P-895 Adapter Cables for Controllers

For Piezoelectric Nanopositioning Systems

LEMO (mechanics) to Sub-D (electronics)
Sub-D (mechanics) to LEMO (electronics)
Sub-D (mechanics) to Sub-D (electronics)

Aller au devis / à la commande

P-895.1DLC

P-895.3DLC

P-895.1LDC

P-895.3DDC

All PI piezo systems are supplied with a complete and matching cable set. In addition, cables can be ordered separately.

On request, cable sets can be adapted, e.g., with respect to cable length, material or functions. For special environments such as cleanrooms or vacuum, PI offers a series of accessory parts such as feedthroughs and customized cables. For optimum system performance, it is recommended to purchase all accessory parts from PI.

Télécharger la fiche technique Aller aux spécifications

Datasheet

Version / Date

2024-01-11

pdf - 376 KB

Version / Date

2024-01-11

pdf - 379 KB

Version / Date

2018-06-15

pdf - 627 KB

Télécharger

Aller au devis / à la commande

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

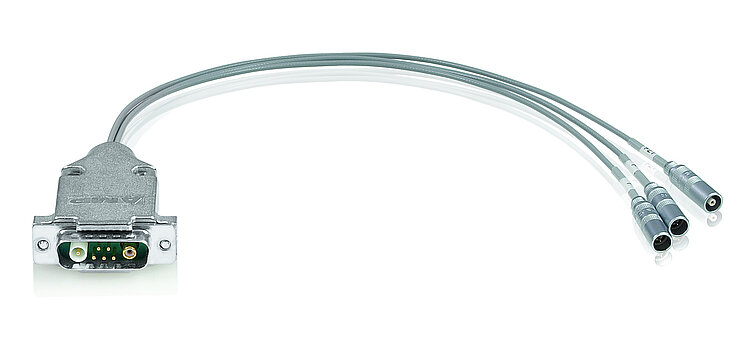

P-895.1LDC

Adapter cable LEMO to D-sub 7W2 (m) for piezo actuator nanopositioning systems with capacitive sensors, 1 channel, length: 0.3 m

Add to quote list Remove from quote list

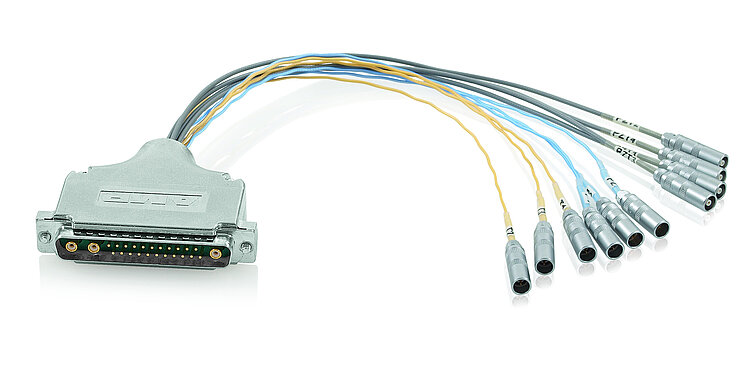

P-895.3LDC

Adapter cable LEMO to D-sub 25W3 (m) for piezo actuator nanopositioning systems with capacitive sensors, 3 channels, length: 0.3 m

Add to quote list Remove from quote list

P-895.4LDS

Adapter cable LEMO to Sub-D 37 (m) for piezo actuators and piezo actuator nanopositioning systems with strain gauge sensors, 4 channels, length: 0.3 m

Add to quote list Remove from quote list

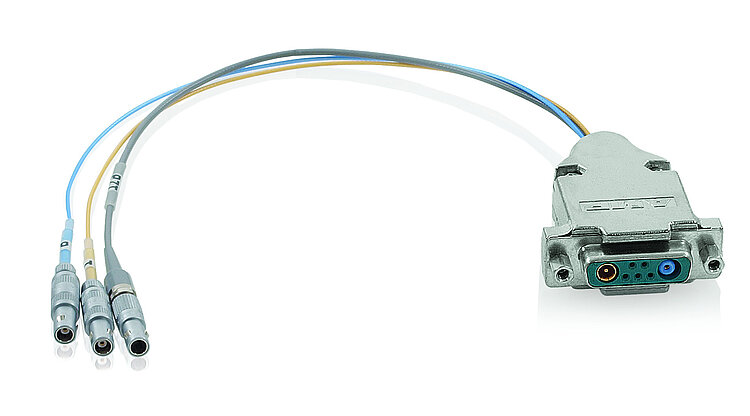

P-895.1DLC

Adapter cable D-sub 7W2 (f) to LEMO for piezo actuator nanopositioning systems with capacitive sensors, 1 channel, length: 0.3 m

Add to quote list Remove from quote list

P-895.3DLC

Adapter cable D-sub 25W3 (f) to LEMO for piezo actuator nanopositioning systems with capacitive sensors, 3 channels, length: 0.3 m

Add to quote list Remove from quote list

P-895.2D1DDC

Adapter cable D-sub 25W3 (f) and D-sub 7W2 (f) to D-sub 25W3 (m) for piezo actuator nanopositioning systems with capacitive sensors, 3 channels, length: 0.3 m

Add to quote list Remove from quote list

P-895.2DDC

Adapter cable 2× D-sub 7W2 (f) to D-sub 25W3 (m) for piezo actuator nanopositioning systems with capacitive sensors, 2 channels, length: 0.3 m

Add to quote list Remove from quote list

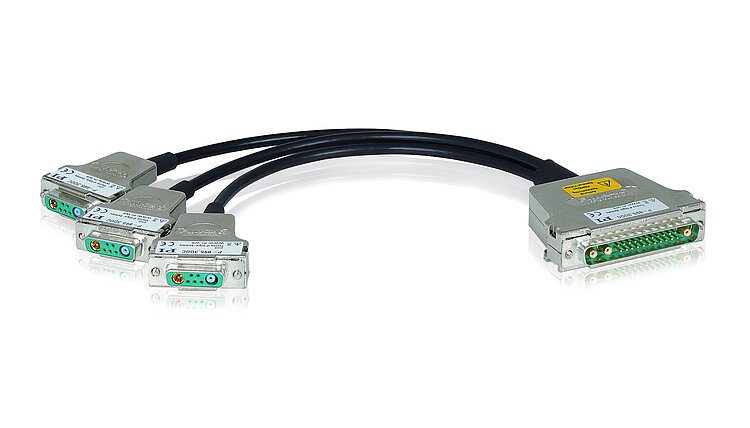

P-895.3DDC

Adapter cable 3× D-sub 7W2 (f) to D-sub 25W3 (m) for piezo actuator nanopositioning systems with capacitive sensors, 3 channels, length: 0.3 m

Add to quote list Remove from quote list

P-895.01

Extension cable D-sub 37 (m) to D-sub 37 (f) for piezo actuators and piezo actuator nanopositioning systems with strain gauge sensors, 4 channels, 1 m

Add to quote list Remove from quote list

P-895.02

Extension cable D-sub 37 (m) to D-sub 37 (f) for piezo actuators and piezo actuator nanopositioning systems with strain gauge sensors, 4 channels, 2 m

Add to quote list Remove from quote list

P-895.03

Extension cable D-sub 37 (m) to D-sub 37 (f) for piezo actuators and piezo actuator nanopositioning systems with strain gauge sensors, 4 channels, 3 m

Add to quote list Remove from quote list

P-895.05

Extension cable D-sub 37 (m) to D-sub 37 (f) for piezo actuators and piezo actuator nanopositioning systems with strain gauge sensors, 4 channels, 5 m

Add to quote list Remove from quote list

P-895.10

Extension cable D-sub 37 (m) to D-sub 37 (f) for piezo actuators and piezo actuator nanopositioning systems with strain gauge sensors, 4 channels, 10 m

Add to quote list Remove from quote list

Ask for custom design Go to quote list
