P-845.10
Preloaded piezo actuator; PICMA® piezo actuator drive; 15 µm travel range; 47 mm length; push force capacity 3000 N; pull force capacity 700 N; SGS, direct position measuring; LEMO connectors; 1 m cable length
P-845 Preloaded Piezo Actuators
For Very High Loads and Forces, with Position Sensor
- Outstanding lifetime due to PICMA® piezo actuators
- Travel range to 90 µm
- Push force capacity to 3000 N
- Pull force capacity to 700 N
- µs response time
- Subnanometer resolution

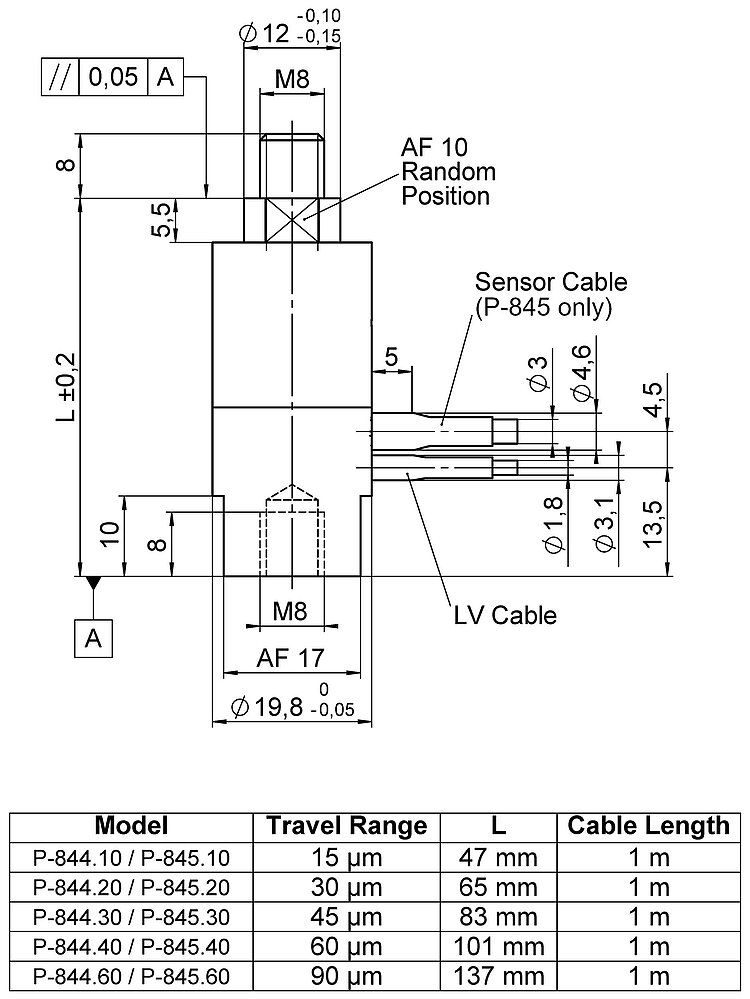

P-844 / P-845, dimensions in mm. Sensor included only with P-845.
P-845 Preloaded Piezo Actuators
Description du produit
Spécifications
Téléchargements
Devis / Commande
Application fields
- Static and dynamic precision positioning
- Fiber positioning
- Laser tuning
- Nanotechnology
Outstanding lifetime thanks to PICMA® piezo actuators
The PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.
Specifications
Datasheet
Datasheet P-845
Version / Date
2024-01-09
pdf - 521 KB
Version / Date
2024-01-09
pdf - 522 KB
Version / Date
2018-10-15
pdf - 686 KB
Specifications
| Motion | P-845.10 | P-845.20 | P-845.30 | P-845.40 | P-845.60 | Tolerance |
|---|---|---|---|---|---|---|
| Active axes | Z | Z | Z | Z | Z | |
| Travel range in Z | 15 µm | 30 µm | 45 µm | 60 µm | 90 µm | |
| Positioning | P-845.10 | P-845.20 | P-845.30 | P-845.40 | P-845.60 | Tolerance |
| Resolution in Z, open loop | 0.15 nm | 0.3 nm | 0.45 nm | 0.6 nm | 0.9 nm | typ. |
| Integrated sensor | SGS, direct position measuring | SGS, direct position measuring | SGS, direct position measuring | SGS, direct position measuring | SGS, direct position measuring | |
| System resolution in Z | 0.3 nm | 0.6 nm | 0.9 nm | 1.2 nm | 1.8 nm | |
| Drive Properties | P-845.10 | P-845.20 | P-845.30 | P-845.40 | P-845.60 | Tolerance |
| Drive type | PICMA® | PICMA® | PICMA® | PICMA® | PICMA® | |
| Electrical capacitance in Z | 6 µF | 12 µF | 18 µF | 24 µF | 36 µF | ±20 % |
| Mechanical Properties | P-845.10 | P-845.20 | P-845.30 | P-845.40 | P-845.60 | Tolerance |
| Stiffness in Z | 225 N/µm | 107 N/µm | 75 N/µm | 57 N/µm | 38 N/µm | ±20 % |
| Resonant frequency in Z, unloaded | 16 kHz | 12 kHz | 9 kHz | 7.5 kHz | 5.5 kHz | ±20 % |
| Permissible push force in Z | 3000 N | 3000 N | 3000 N | 3000 N | 3000 N | max. |
| Permissible pull force in Z | 700 N | 700 N | 700 N | 700 N | 700 N | max. |
| Permissible torque in θZ | 1 N·m | 1 N·m | 1 N·m | 1 N·m | 1 N·m | max. |
| Mass without cable | 84 g | 108 g | 132 g | 156 g | 204 g | ±5 % |
| Material | Housing / tip: Stainless steel | Housing / tip: Stainless steel | Housing / tip: Stainless steel | Housing / tip: Stainless steel | Housing / tip: Stainless steel | |
| Length | 47 mm | 65 mm | 83 mm | 101 mm | 137 mm | ±0,2 mm |
| Miscellaneous | P-845.10 | P-845.20 | P-845.30 | P-845.40 | P-845.60 | Tolerance |
| Operating temperature range | -40 to 80 °C | -40 to 80 °C | -40 to 80 °C | -40 to 80 °C | -40 to 80 °C | |
| Connector | LEMO LVPZT | LEMO LVPZT | LEMO LVPZT | LEMO LVPZT | LEMO LVPZT | |
| Cable length | 1 m | 1 m | 1 m | 1 m | 1 m | |
| Recommended controllers / drivers | E-503, E-505, E-610, E-621, E-625, E-663, E-665, E-709, E-831 | E-503, E-505, E-610, E-621, E-625, E-663, E-665, E-709, E-831 | E-503, E-505, E-610, E-621, E-625, E-663, E-665, E-709, E-831 | E-503, E-505, E-610, E-621, E-625, E-663, E-665, E-709, E-831 | E-503, E-505, E-610, E-621, E-625, E-663, E-665, E-709, E-831 |
Integrated sensor: Versions with SGS allow closed-loop linearity up to 0.15 % and are shipped with calibration log.
Stiffness in Z: Static large-signal stiffness; dynamic small-signal stiffness is approx. 30 % higher.
The resolution of the system is only limited by the noise of the amplifier and measuring technology because PI piezo actuators are free of friction.
Downloads
Product Note
Product Note
Product Change Notification P-8XX.XX
Version / Date
2023-02-22
pdf - 92 KB
Product Note
Product Change Notification Piezo Actuator Driven Products
Version / Date
2021-04-19
pdf - 377 KB
Anglais
Datasheet
Datasheet
Datasheet P-845
Version / Date
2024-01-09
pdf - 521 KB
Version / Date
2024-01-09
pdf - 522 KB
Version / Date
2018-10-15
pdf - 686 KB
Documentation
Documentation
Short Instructions PZ303
Housed PICMA® Actuators to 100 V
Version / Date
1.2.0 11/2020
pdf - 958 KB
Version / Date
1.2.0 11/2020
pdf - 961 KB
Documentation
User Manual P845M0001
P-845 Preloaded piezo actuators
Version / Date
2021-01-29
pdf - 2 MB
Version / Date
2021-01-29
pdf - 2 MB
Documentation
User Manual P845M0002
P-845.xxV Preloaded piezo actuators (vacuum versions)
Version / Date
2021-02-23
pdf - 3 MB
Version / Date
2021-02-23
pdf - 3 MB
3D Models
3D Models
P-844 / P-845 3-D model
zip - 92 KB
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
P-845.20
Preloaded piezo actuator; PICMA® piezo actuator drive; 30 µm travel range; 65 mm length; push force capacity 3000 N; pull force capacity 700 N; SGS, direct position measuring; LEMO connectors; 1 m cable length
P-845.30
Preloaded piezo actuator; PICMA® piezo actuator drive; 45 µm travel range; 83 mm length; push force capacity 3000 N; pull force capacity 700 N; SGS, direct position measuring; LEMO connectors; 1 m cable length
P-845.40
Preloaded piezo actuator; PICMA® piezo actuator drive; 60 µm travel range; 101 mm length; push force capacity 3000 N; pull force capacity 700 N; SGS, direct position measuring; LEMO connectors; 1 m cable length
P-845.60
Preloaded piezo actuator; PICMA® piezo actuator drive; 90 µm travel range; 137 mm length; push force capacity 3000 N; pull force capacity 700 N; SGS, direct position measuring; LEMO connectors; 1 m cable length
