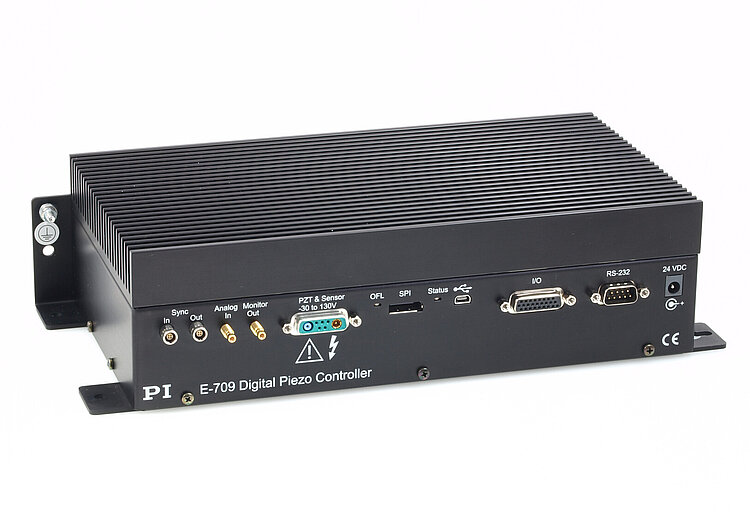

E-709.CHG Digital 1-Channel Piezo Controller

Function

Digital, high dynamics controller for single-axis piezo nanopositioning systems

Axes

1

Processor

DSP 32-bit floating point, 150 MHz

Supported functions

Wave generator, data recorder, autozero, trigger I/O

Controller type

PID, two notch filters, sensor linearization

Sampling rate, servo control

10 kHz

Sampling rate, sensor

10 kHz

Sensor type

Capacitive

Linearization

5th order polynomials

Sensor bandwidth

5 kHz

Sensor resolution

16-bit

External synchronization

Yes

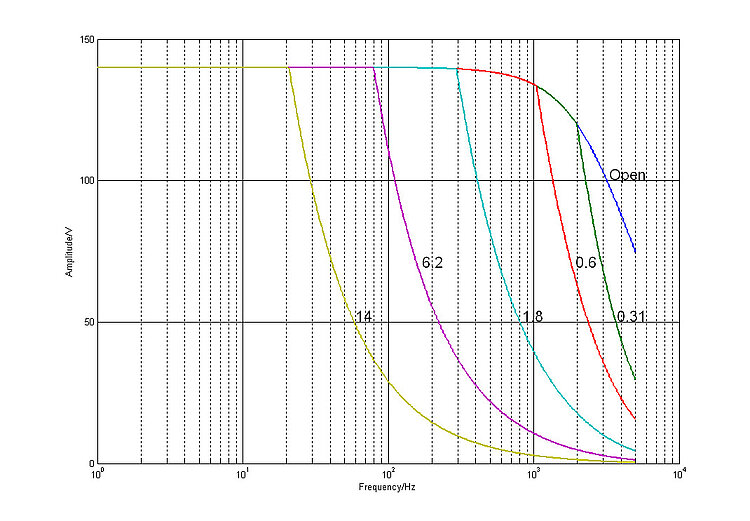

Output voltage

-30 to 130 V

Peak power (<2 ms)

50 W

Average output power (>5 ms)

15 W

Peak current (<2 ms)

500 mA

Average output current (>5 ms)

160 mA

Current limitation

Short-circuit proof

Resolution DAC

17-bit

Communication interfaces

USB, RS-232, SPI

Piezo / sensor connector

D-sub special 7W2

Analog input socket

SMB

Sensor monitor socket

SMB

I/O connector

HD D-sub 26 (f)

1 analog input 0 to 10 V (configurable)

1 analog output 0 to 10 V (configurable)

1 monitor piezo voltage -0.3 to 1.3 V

1 digital input (LVTTL, programmable)

5 digital outputs (LVTTL, 3 × predefined, 2 × programmable)

Command set

PI General Command Set (GCS)

User software

PIMikroMove

Application programming interfaces

C, C++, C#, MATLAB, NI LabVIEW, Python; supported by MATLAB, µManager, Andor iQ

Display and indicators

Status LED, overflow LED

Operating temperature range

5 to 50 °C

Dimensions

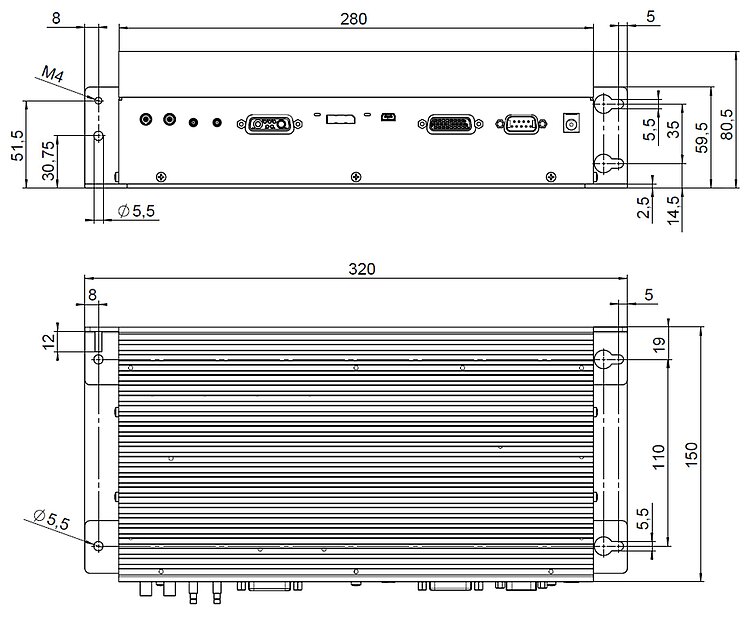

320 mm × 150 mm × 80 mm

Mass

2.5 kg

Operating voltage

24 V DC, included in the scope of delivery: external power adapter

Max. power consumption

45 W
