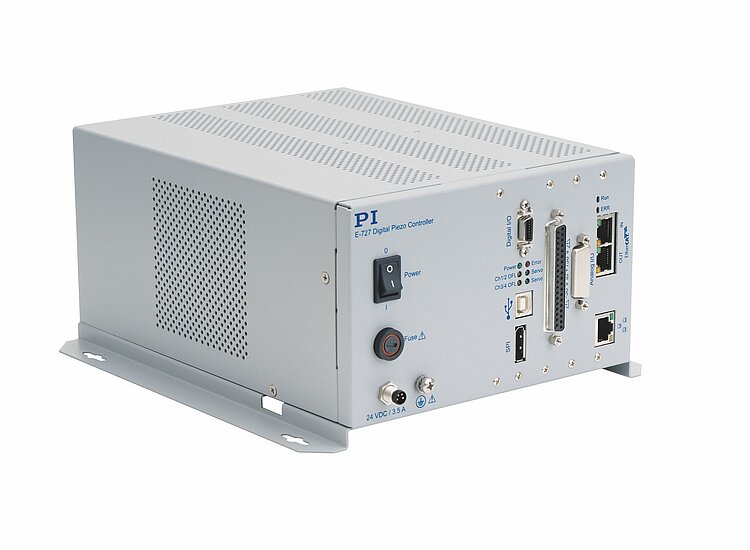

E-727.xF Digital Multi-Channel Piezo Controller with EtherCAT
Control Piezo Nanopositioning Systems via Fieldbus Interface
- Integration into an automation system thanks to EtherCAT
- Operating modes: CSP, PP, homing
- Cycle time 1 ms
- 20 kHz sampling rate control
- Autoloading of calibration data from stage ID chip for interchangeability of controller and mechanics
- 4th order polynomial linearization for mechanics and electronics
Digital controller for piezo-based nanopositioning systems
Integrated low-noise power amplifiers for PICMA® piezo actuators. Output voltage -30 to +130 V. Supports strain gauge sensors, capacitive sensors or piezoresistive sensors. Delivery includes wide input range power supply and USB cable.
EtherCAT fieldbus interface
Controller and nanopositioning system behave like an intelligent multi-axis drive according to CiA402 drive profile. Can be integrated seamlessly into automation systems in industry and research. Operating modes according to IEC 61800-7-201: Cyclic Synchronous Position (CSP), Profile Position (PP) and Homing (manufacturer-specific method: Autozero). Cycle time 1 ms.
Operation via TCP/IP or USB
Operation via TCP/IP or USB is possible without EtherCAT master. The controller then has the same functionality as an E-727 without fieldbus interface and is commanded via PI GCS. Extensive software support, e.g., for NI LabVIEW, dynamic libraries for Windows and Linux.
Extensive functionality
P-I controller with 2 notch filters. Linearization based on 4th-order polynomials. Optional Dynamic Digital Linearization (DDL). ID chip for fast startup and quick exchange of system components.
Further interfaces
SPI for fast serial transmission of position values to / from an SPI master. 4 analog inputs and outputs each (optional) for external sensors, target values or external amplifiers. 4 digital inputs and outputs respectively.

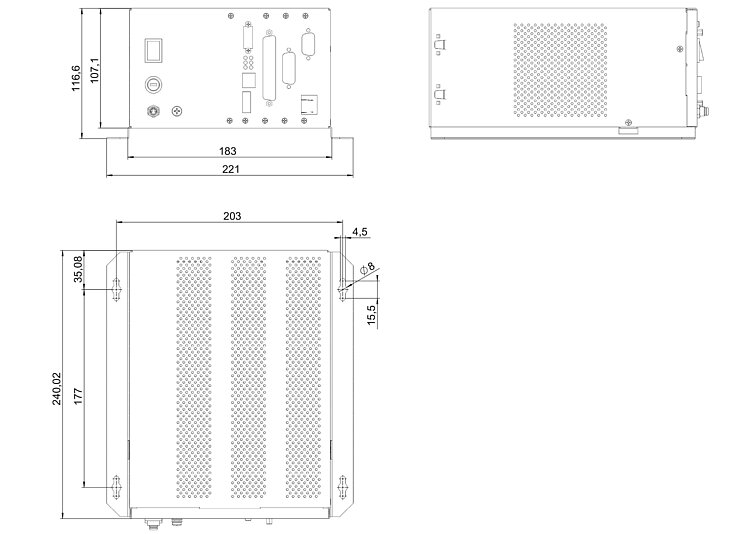

Specifications
Datasheet E-727.xF
Specifications
E-727.3xDF, E-727.3xDAF | |
---|---|
Function | Digital controller for multi-axis piezo nanopositioning systems. Fieldbus integration via EtherCAT interface. Additional functions with .3xDAF: Analog interfaces |
Axes | 3 |
Processor | DSP 32/64-bit, floating point, 375 MHz |
Sampling rate, servo control | 20 kHz |
Sampling rate, sensor | 100 kHz |
Sensor | |
Controller type | P-I, two notch filters Optional: Advanced piezo control |
Sensor type | E-727.xCxxx: Capacitive E-727.xSxxx: Strain gauge sensors E-727.xRxxx: Piezoresistive |
Sensor channels | E-727.xCxxx: 3 E-727.xSxxx, E-727.xRxxx: 4 |
Sensor bandwidth (-3 dB) | 10 kHz |
Sensor resolution (at 1 kHz oversampling) | 20-bit |
Amplifier | |
Output voltage | -30 to 130 V (±3 V) |
Amplifier channels | 4 |
Peak power / channel | 28 W max. 30 ms |
Average output power / channel | 14 W |
Peak current / channel | 180 mA max. 30 ms |
Average output current / channel | 75 mA |
Current limitation | Short-circuit proof |
Resolution DAC | 20-bit |

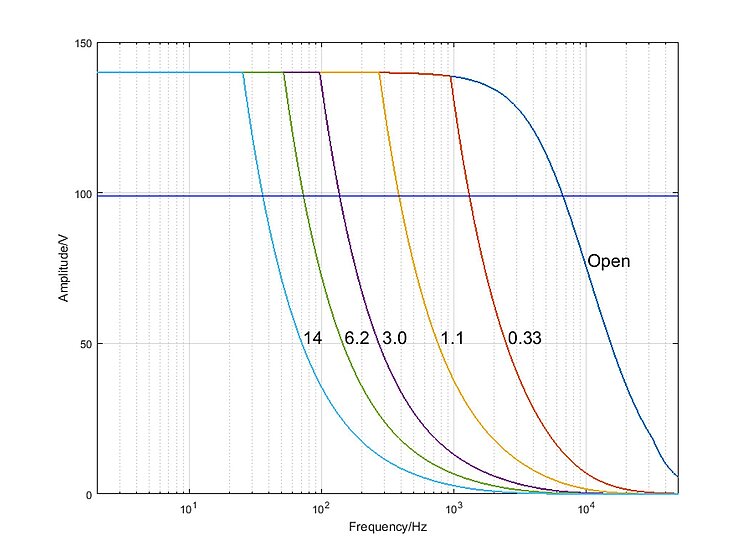

Amplifier bandwidth | 6.5 kHz |
Communication | |
PC | TCP/IP, USB (2.0) |
SPI | Connector for SPI master for fast serial transmission of target and current position |
Fieldbus | EtherCAT (CoE = CANopen over EtherCAT) |
Interfaces | |
Piezo / sensor connection | E-727.xCxxx: Sub-D 25W3 (f) E-727.xSxxx, E-727.xRxxx: Sub-D 37 (f) |
Analog inputs | E-727.3xDAF only: Sub-D 15 (f) 4 inputs ±5 V or ±10 V 18-bit A/D converter |
Analog output | E-727.3xDAF only: Sub-D 15 (f) ±10 V 20-bit D/A converter |
Sensor monitor output | E-727.3xDAF only: Sub-D 15 (f) Sensor channels 1 to 3 |
Digital input/output | MDR14; 4 inputs, 4 outputs |
Separate protective earth connection | Yes |
Operation | |
Communication via PC | Command set: PI General Command Set (GCS) User software: PIMikroMove Software drivers: NI LabVIEW and MATLAB driver, shared libraries for Windows and Linux, extensive example code |
Communication via fieldbus (EtherCAT) | Drive profile CiA402 (IEC 61800-7-201) Operating modes: Cyclic Synchronous Position (CSP), Profile Position (PP), Homing Min. cycle time: 1 ms |
Supported functions | Autozero, ID chip detection Addressable with GCS commands only: Wave generator, data recorder, macros |
Display and indicators | LEDs for Power, Servo, Error, Overflow, EtherCAT communication |
Linearization | 4th-order polynomials, DDL (Dynamic Digital Linearization, optional) |
Miscellaneous | |
Operating temperature range | 5 to 40 °C |
Overheat protection | Max. 72 °C, deactivation of the voltage output |
Mass | 2.4 to 2.6 kg |
Fuse | 1 x T3.15 AH, 5 × 20 mm |
Max. power consumption | 80 W |
Max. power consumption without load | 24 W |
Operating voltage | 24 V DC (external power adapter in the scope of delivery) |
