L-731.093111
Precision XY stage; DC motor; 205 mm × 205 mm travel range (X × Y); 200 N load capacity; 50 mm/s × 50 mm/s maximum velocity; ball screw; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak

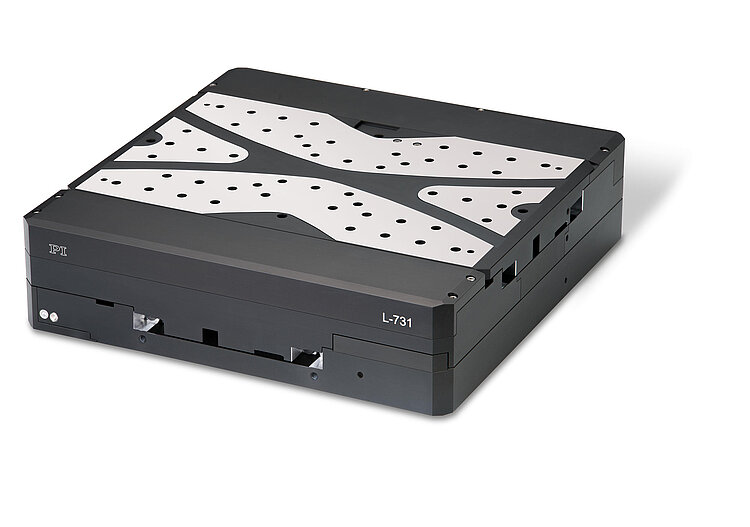

L-731 Precision XY Stage
High Travel Accuracy and Stability
- Travel range 205 mm × 205 mm (8")
- Unidirectional repeatability to 0.025 µm
- Velocity to 90 mm/s
- 2-phase stepper motor or DC motors
- Incremental linear encoder with 1 nm resolution
- Rotary encoder with 20000 impulses/revolution

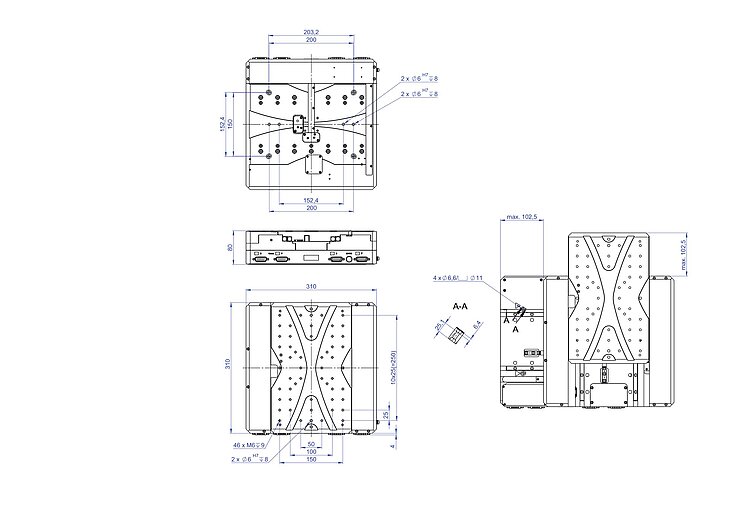

L-731, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.
L-731 Precision XY Stage
Description du produit
Spécifications
Téléchargements
Devis / Commande
Highly accurate position measuring with incremental linear encoder
Noncontact optical linear encoders measure the position directly at the platform with the greatest accuracy. Nonlinearity, mechanical play or elastic deformation have no influence on the measurement. Optical limit and reference switches. More travel ranges on request.
Crossed roller guide
With crossed roller guides, the point contact of the balls in ball guides is replaced by line contact of the hardened rollers. Consequently, they are considerably stiffer and need less preload, which reduces friction and allows smoother running. Crossed roller guides are also distinguished by high guiding accuracy and load capacity. Force-guided rolling element cages prevent cage creep.
Drive types
- 2-phase stepper motor for high torque even at low velocities and higher resolution
- DC motor for high velocity constancy, low vibration, and high velocities
Application fields
Medical industry. Laser cutting. Biotechnology. Measuring technology. Laser inscription.
Specifications
Datasheet
Datasheet L-731
Version / Date
2024-10-18
pdf - 1 MB
Version / Date
2024-10-18
pdf - 1 MB
Version / Date
2021-01-18
pdf - 485 KB
Specifications
Select a travel range:
| Motion | L-731.093111 | L-731.093112 | L-731.093132 | L-731.40SD | L-731.44SD | L-731.4ASD | Tolerance |
|---|---|---|---|---|---|---|---|
| Active axes | X ǀ Y | X ǀ Y | X ǀ Y | X ǀ Y | X ǀ Y | X ǀ Y | |
| Travel range in X | 205 mm | 205 mm | 205 mm | 205 mm | 205 mm | 205 mm | |
| Travel range in Y | 205 mm | 205 mm | 205 mm | 205 mm | 205 mm | 205 mm | |
| Maximum velocity in X, unloaded | 50 mm/s | 50 mm/s | 90 mm/s | 45 mm/s | 45 mm/s | 45 mm/s | |
| Maximum velocity in Y, unloaded | 50 mm/s | 50 mm/s | 90 mm/s | 45 mm/s | 45 mm/s | 45 mm/s | |
| Orthogonality | ± 96.96 µrad | ± 96.96 µrad | ± 96.96 µrad | ± 96.96 µrad | ± 96.96 µrad | ± 96.96 µrad | typ. |
| Straightness error E_XY (straightness) | ± 2 µm | ± 2 µm | ± 2 µm | ± 2 µm | ± 2 µm | ± 2 µm | typ. |
| Straightness error E_YX (straightness) | ± 2 µm | ± 2 µm | ± 2 µm | ± 2 µm | ± 2 µm | ± 2 µm | typ. |
| Straightness error E_ZX (flatness) | ± 2 µm | ± 2 µm | ± 2 µm | ± 2 µm | ± 2 µm | ± 2 µm | typ. |
| Straightness error E_ZY (flatness) | ± 2 µm | ± 2 µm | ± 2 µm | ± 2 µm | ± 2 µm | ± 2 µm | typ. |
| Angular error E_AY (pitch) | ± 75 µrad | ± 75 µrad | ± 75 µrad | ± 75 µrad | ± 75 µrad | ± 75 µrad | typ. |
| Angular error E_BX (pitch) | ± 75 µrad | ± 75 µrad | ± 75 µrad | ± 75 µrad | ± 75 µrad | ± 75 µrad | typ. |
| Angular error E_CX (yaw) | ± 30 µrad | ± 30 µrad | ± 30 µrad | ± 30 µrad | ± 30 µrad | ± 30 µrad | typ. |
| Angular error E_CY (yaw) | ± 30 µrad | ± 30 µrad | ± 30 µrad | ± 30 µrad | ± 30 µrad | ± 30 µrad | typ. |
| Positioning | L-731.093111 | L-731.093112 | L-731.093132 | L-731.40SD | L-731.44SD | L-731.4ASD | Tolerance |
| Minimum incremental motion in X | 0.1 µm | 0.5 µm | 0.8 µm | 1 µm | 0.05 µm | 0.05 µm | typ. |
| Minimum incremental motion in Y | 0.1 µm | 0.5 µm | 0.8 µm | 1 µm | 0.05 µm | 0.05 µm | typ. |
| Unidirectional repeatability in X | ± 0.05 µm | ± 0.25 µm | ± 0.4 µm | ± 0.5 µm | ± 0.025 µm | ± 0.025 µm | typ. |
| Unidirectional repeatability in Y | ± 0.05 µm | ± 0.25 µm | ± 0.4 µm | ± 0.5 µm | ± 0.025 µm | ± 0.025 µm | typ. |
| Bidirectional repeatability in X | 1 µm | 1 µm | 5 µm | 5 µm | 1 µm | 1 µm | typ. |
| Bidirectional repeatability in Y | 1 µm | 1 µm | 5 µm | 5 µm | 1 µm | 1 µm | typ. |
| Reference switch | Forked photoelectric sensor, N/C contact, 5 V, NPN | Forked photoelectric sensor, N/C contact, 5 V, NPN | Forked photoelectric sensor, N/C contact, 5 V, NPN | Forked photoelectric sensor, N/C contact, 5 V, NPN | Forked photoelectric sensor, N/C contact, 5 V, NPN | Forked photoelectric sensor, N/C contact, 5 V, NPN | |
| Reference switch repeatability | 1 µm | 1 µm | 1 µm | 1 µm | 1 µm | 1 µm | |
| Limit switches | Forked photoelectric sensor, N/C contact, 5 V, NPN | Forked photoelectric sensor, N/C contact, 5 V, NPN | Forked photoelectric sensor, N/C contact, 5 V, NPN | Forked photoelectric sensor, N/C contact, 5 V, NPN | Forked photoelectric sensor, N/C contact, 5 V, NPN | Forked photoelectric sensor, N/C contact, 5 V, NPN | |
| Integrated sensor | Incremental linear encoder | Incremental linear encoder | Incremental rotary encoder | — | Incremental linear encoder | Incremental linear encoder | |
| Sensor signal | Sin/cos, 1 V peak-peak | A/B quadrature, RS-422 | A/B quadrature, RS-422 | — | A/B quadrature, RS-422 | Sin/cos, 1 V peak-peak | |
| Sensor signal period | 20 µm | — | — | — | — | 20 µm | |
| System resolution in X | 1 nm | 10 nm | 100 nm | 10000 nm | 10 nm | 1 nm | |
| System resolution in Y | 1 nm | 10 nm | 100 nm | 10000 nm | 10 nm | 1 nm | |
| Sensor resolution | — | — | 20000 Cts./rev. | — | — | — | |
| Drive Properties | L-731.093111 | L-731.093112 | L-731.093132 | L-731.40SD | L-731.44SD | L-731.4ASD | Tolerance |
| Drive type | DC motor | DC motor | DC motor | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor | |
| Operating voltage | 24 V | 24 V | 24 V | 24 V | 24 V | 24 V | |
| Nominal current, RMS | 3.9 A | 3.9 A | 3.9 A | 1.2 A | 1.2 A | 1.2 A | typ. |
| Drive force in X | 100 N | 100 N | 100 N | 100 N | 100 N | 100 N | typ. |
| Drive force in Y | 100 N | 100 N | 100 N | 100 N | 100 N | 100 N | typ. |
| Resistance phase-phase | 5.84 Ω | 5.84 Ω | 5.84 Ω | 3.4 Ω | 3.4 Ω | 3.4 Ω | typ. |
| Inductance phase-phase | 0.56 mH | 0.56 mH | 0.56 mH | 2.8 mH | 2.8 mH | 2.8 mH | |
| Motor resolution | — | — | — | 200 Full steps/rev. | 200 Full steps/rev. | 200 Full steps/rev. | |
| Mechanical Properties | L-731.093111 | L-731.093112 | L-731.093132 | L-731.40SD | L-731.44SD | L-731.4ASD | Tolerance |
| Permissible push force in Z | 200 N | 200 N | 200 N | 200 N | 200 N | 200 N | max. |
| Permissible torque in θX | 125 N·m | 125 N·m | 125 N·m | 125 N·m | 125 N·m | 125 N·m | max. |
| Permissible torque in θY | 125 N·m | 125 N·m | 125 N·m | 125 N·m | 125 N·m | 125 N·m | max. |
| Permissible torque in θZ | 125 N·m | 125 N·m | 125 N·m | 125 N·m | 125 N·m | 125 N·m | max. |
| Moved mass in X, unloaded | 12000 g | 12000 g | 12000 g | 12000 g | 12000 g | 12000 g | |
| Moved mass in Y, unloaded | 3500 g | 3500 g | 3500 g | 3500 g | 3500 g | 3500 g | |
| Drive screw type | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | |
| Drive screw pitch | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | |
| Guide | Crossed roller guide | Crossed roller guide | Crossed roller guide | Crossed roller guide | Crossed roller guide | Crossed roller guide | |
| Overall mass | 16000 g | 16000 g | 16000 g | 15500 g | 15500 g | 15500 g | |
| Material | Aluminum, black anodized | Aluminum, black anodized | Aluminum, black anodized | Aluminum, black anodized | Aluminum, black anodized | Aluminum, black anodized | |
| Miscellaneous | L-731.093111 | L-731.093112 | L-731.093132 | L-731.40SD | L-731.44SD | L-731.4ASD | Tolerance |
| Operating temperature range | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | |
| Connector | 2 × HD D-sub 26 (m) | 2 × HD D-sub 26 (m) | 2 × HD D-sub 26 (m) | 2 × HD D-sub 26 (m) | 2 × HD D-sub 26 (m) | 2 × HD D-sub 26 (m) | |
| Sensor connector | 2 × D-sub 15 (f) | — | — | — | — | 2 × D-sub 15 (f) | |
| Recommended controllers / drivers | G-901.R319 C-891.130300 C-885 with C-891.11C885 ACS modular controller | G-901.R319 C-863.12 C-885 with C-863.20C885 C-884.4DC, C-884.6DC ACS modular controller | G-901.R319 C-863.12 C-885 with C-863.20C885 C-884.4DC, C-884.6DC ACS modular controller | G-901.R319 C-663.12 C-885 with C-663.12C885 ACS modular controller | G-901.R319 C-663.12 C-885 with C-663.12C885 ACS modular controller | G-901.R319 ACS modular controller |
At PI, technical data is specified at 22 ±3 °C. Unless otherwise stated, the values are for unloaded conditions. Some properties are interdependent. The designation "typ." indicates a statistical average for a property; it does not indicate a guaranteed value for every product supplied. During the final inspection of a product, only selected properties are analyzed, not all. Please note that some product characteristics may deteriorate with increasing operating time.
Downloads
Product Note
Product Note
Product Change Notification Motor Driven Products
Version / Date
2021-04-19
pdf - 917 KB
Anglais
Datasheet
Datasheet
Datasheet L-731
Version / Date
2024-10-18
pdf - 1 MB
Version / Date
2024-10-18
pdf - 1 MB
Version / Date
2021-01-18
pdf - 485 KB
Documentation
Documentation
User Manual MP158
L-731 / V-731 Precision XY Stage
Version / Date
1.2.0 2024-01-18
pdf - 2 MB
Version / Date
1.2.0 2024-01-18
pdf - 2 MB
Documentation
Short Instructions MP146EK
Positioners with Electric Motors: DT-xx / HPS-170 / L-xxx / LS-xxx / PRS-xxx / RS-40 / UPL-120 / VT-80 / WT-xx / WT-xxx
Version / Date
3.0.0 2024-01-15
pdf - 261 KB
Version / Date
3.0.0 2024-01-15
pdf - 295 KB
3D Models
3D Models
L-731 3-D model
zip - 9 MB
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
L-731.093112
Precision XY stage; DC motor; 205 mm x 205 mm travel range (X × Y); 200 N load capacity; 50 mm/s × 50 mm/s maximum velocity; ball screw; incremental linear encoder, A/B quadrature, RS-422
L-731.093132
Precision XY stage; DC motor; 205 mm × 205 mm travel range (X × Y); 200 N load capacity; 90 mm/s × 90 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev sensor resolution, A/B quadrature, RS-422
L-731.40SD
Precision XY stage; 2-phase stepper motor; 205 mm × 205 mm travel range (X × Y); 200 N load capacity; 45 mm/s × 45 mm/s maximum velocity; ball screw
L-731.44SD
Precision XY stage; 2-phase stepper motor; 205 mm x 205 mm travel range (X × Y); 200 N load capacity; 45 mm/s × 45 mm/s maximum velocity; ball screw; incremental linear encoder, A/B quadrature, RS-422
L-731.4ASD
Precision XY stage; 2-phase stepper motor; 205 mm × 205 mm travel range (X × Y); 200 N load capacity; 45 mm/s × 45 mm/s maximum velocity; ball screw; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak
