C-663.12C885 Mercury Step Stepper Motor Controller Module for C-885 PIMotionMaster

For Positioners with 2-Phase Stepper Motors, 1 Axis

High microstep resolution
Fast-running motor (output voltage 48 V, even at lower operating voltage)
Closed-loop operation of 2-phase stepper motors
Support for external sensors
ID chip detection for fast startup

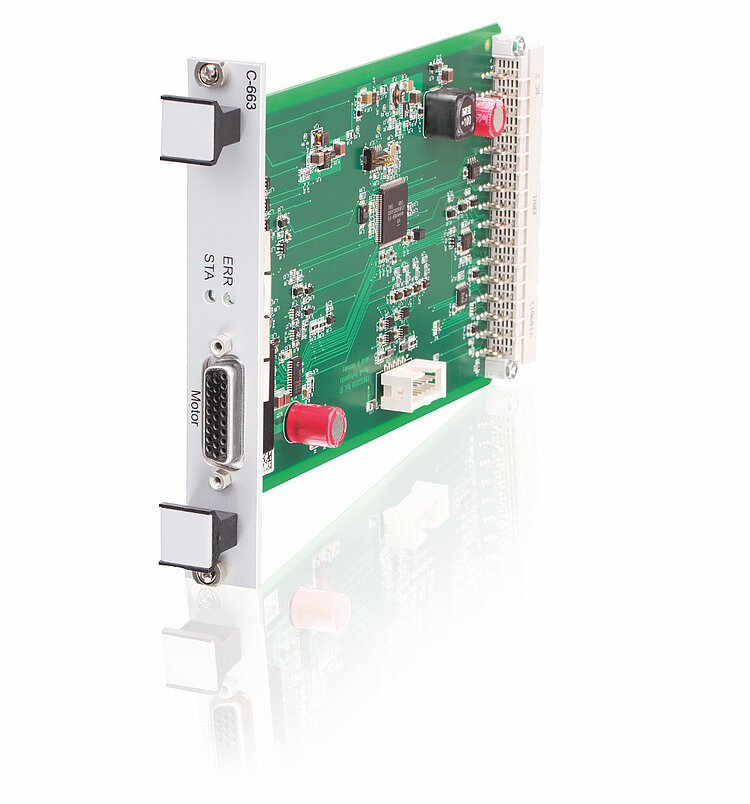

Mercury Step controller module for positioners with 2-phase stepper motors

1 axis. Microstep resolution: 1/2048 full step. Closed-loop operation. Point-to-point motion, trapezoidal velocity profile. Fast-running motor, even at lower operating voltage.

Technology

Interfaces

Differential signal transmission for digital (A/B) encoder signals. Inputs for TTL signals for limit and reference switches. Input for RS-422 signals for index switch. I/O lines (analog / digital) for automation.

Functionality and software

Powerful macro programming language. Nonvolatile macro memory, e.g., for stand-alone operation with autostart macro. Data recorder. ID chip detection for fast startup. PID controller, parameters modifiable during operation.

Extensive software support, e.g., for NI LabVIEW, C, C++, MATLAB, Python. PIMikroMove user software.

Installation and operation

Plug-and-play installation in the C-885 PIMotionMaster: Can be inserted in any free slot. Automatic detection and external communication by the processor and interface module of the C-885. Expandable by optional digital inputs and outputs. Power supply via the power adapter of the C-885.

Télécharger la fiche technique Aller aux spécifications Aller au devis / à la commande

Datasheet

Version / Date

2026-11-10

pdf - 209 KB

Version / Date

2026-11-10

pdf - 212 KB

Version / Date

2026-11-10

pdf - 263 KB

Télécharger

Basics	C-663.12C885
Housing type	Module without housing, 4 HP
Drive type	2-phase stepper motor
Axes	1
Application-related functions	Startup macro; data recorder; ID chip detection
Protective functions	Automatic motor stop when a programmable position error is exceeded; temperature protection switches off at excessively high temperatures; internal safety circuitry: Watchdog timer
Configuration management	Import of parameter files; manual parameter input; reading the ID chip (for future use)

Motion and control	C-663.12C885
Motion types	Point-to-point motion
Microstep resolution	1/2048 full step
Supported sensor signal	AB quadrature, RS-422
Control variables	Position
Max. control frequency (servo cycle)	20000 Hz
Limit switch input	TTL
Reference switch input	TTL
Index switch	RS-422 for index pulse

Electrical properties	C-663.12C885
Output voltage	0 V to 48 V*
Max. output power	60 W
Average output power	48 W
Power consumption, full load	48 W
Power consumption without load	3 W
Current limitation	2.5 A

Interfaces and operation	C-663.12C885
Communication interfaces	TCP/IP; USB
Command set	GCS 2.0
User software	PIMikroMove
Application programming interfaces	C, C++, C#; MATLAB; NI LabVIEW; Python
Analog inputs	4 (optionally via C-885)
Analog input signal	0 V to 5 V
Digital inputs	4 (optionally via C-885)
Digital input signal	TTL
Digital outputs	4 (optionally via C-885)
Digital output signal	TTL

Miscellaneous	C-663.12C885
Motor / sensor connector	HD D-sub 26 (f)
Operating voltage	24 V DC or 48 V DC from external power adapter
Operating temperature range	5 °C to 50 °C
Mass	132 g

* At lower supply voltages, the 48 V output voltage is generated by means of a voltage converter.
