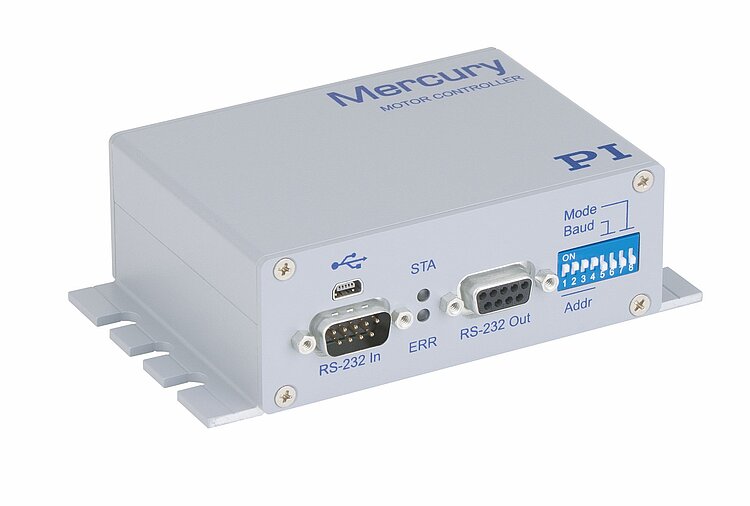

C-863 Mercury Servo Controller
1 Axis, for DC Motors and PWM Motor Drivers
- High-speed encoder input to 60 MHz
- Powerful macro programming language, e.g., for stand-alone operation
- Nonvolatile memory for macros and parameters
- Data recorder
- Daisy chain networking
- Connector for joystick
Digital motion controller for DC servo motors
1 axis. Motion control of PI positioning systems with DC motor: Direct motor control; PWM control for fast PI stages with integrated ActiveDrive amplifiers or with brushless motors and integrated block commutation. PID controller. Supports motor brake.
Interfaces and communication
USB and RS-232 interface for commanding. A/B quadrature encoder input. TTL inputs for limit and reference switches. I/O lines (analog/digital) for automation. Connector for analog joystick. Daisy chain networking for up to 16 axes operated via a common computer interface.
Extensive functions, software support
Powerful macro command language. Nonvolatile macro storage, e.g., for stand-alone operation with autostart macro. Data recorder. PID controller, parameter changing during operation. Extensive software support, e.g., for NI LabVIEW, C, C++, MATLAB, Python. PIMikroMove user software.
Specifications
Datasheet C-863
Specifications
C-863.12 | |
---|---|
Function | DC motor control |
Drive types | DC motor, servo controlled Motors with PWM control, e.g., ActiveDrive amplifiers or brushless motors with integrated block commutation |
Axes | 1 |
Supported functions | Point-to-point motion. Startup macro. Data recorder for recording operating data such as motor voltage, velocity, position or position error. ID chip detection. Internal safety circuitry: Watchdog timer. |
Motion and control | C-863.12 |
---|---|
Controller type | PID controller, parameter changing during operation |
Servo cycle time | 50 µs |
Profile generator | Trapezoidal velocity profile |
Encoder input | A/B quadrature single-ended or differential TTL signal acc. to RS-422; 60 MHz |
Stall detection | Automatic motor stop when a programmable position error is exceeded |
Limit switches | 2 × TTL (programmable polarity) |
Reference switch | 1 × TTL |
Motor brake | 1 × TTL, can be switched by software |
Interfaces and operation | C-863.12 |
---|---|
Communication interfaces | USB; RS-232, D-sub 9 (m) |
Motor connector | HD D-sub 26 (f) |
Controller network | Up to 16 units** on a single interface |
I/O lines | 4 analog / digital inputs (0 to 5 V / TTL), 4 digital outputs (TTL) |
Command set | PI General Command Set (GCS) |
User software | PIMikroMove |
Application programming interfaces | API for C / C++ / C# / VB.NET / MATLAB / Python, drivers for NI LabVIEW |
Manual control | Joystick, Y cable for 2-D motion, pushbutton box |
Miscellaneous | C-863.12 |
---|---|
Operating voltage | 12 to 48 V DC *** from external power adapter (24 V DC power adapter included in the scope of delivery) |
Max. current consumption | 40 mA without load (when supplied with 48 V) 80 mA without load (when supplied with 24 V) |
Operating temperature range | 5 to 50 °C (temperature protection switches off at excessively high temperatures) |
Mass | 0.48 kg |

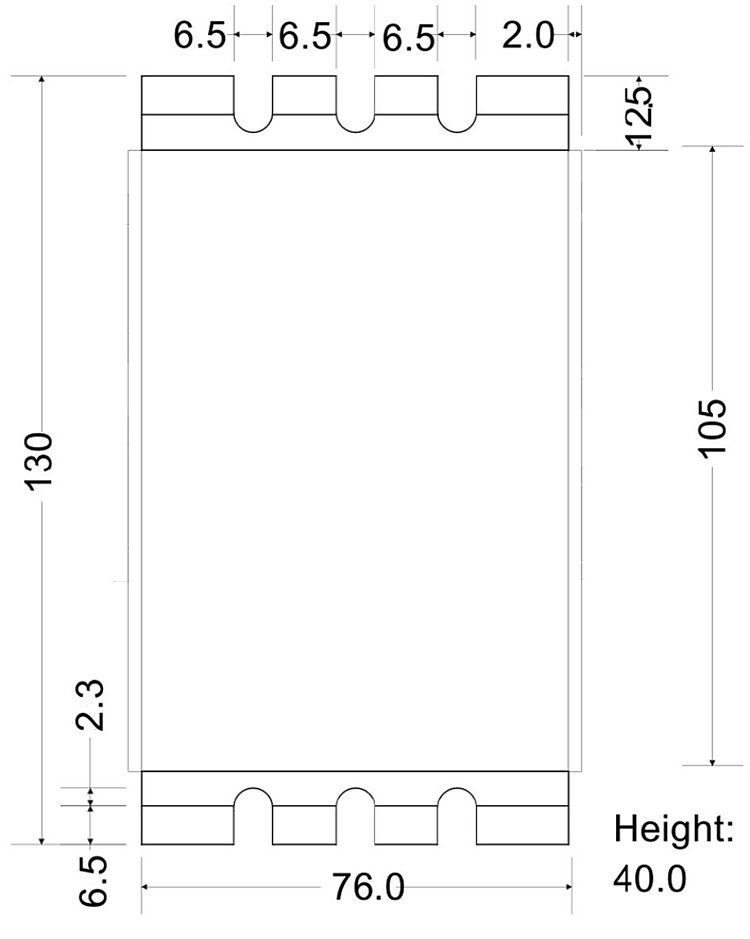

Dimensions | 130 mm × 76 mm × 40 mm (incl. mounting rails) |
