High-Load Piezo Actuators with Inner Hole

High load capacity
Extreme reliability: >10⁹ cycles
Microsecond response
Subnanometer resolution
Large choice of designs

Aller au devis / à la commande

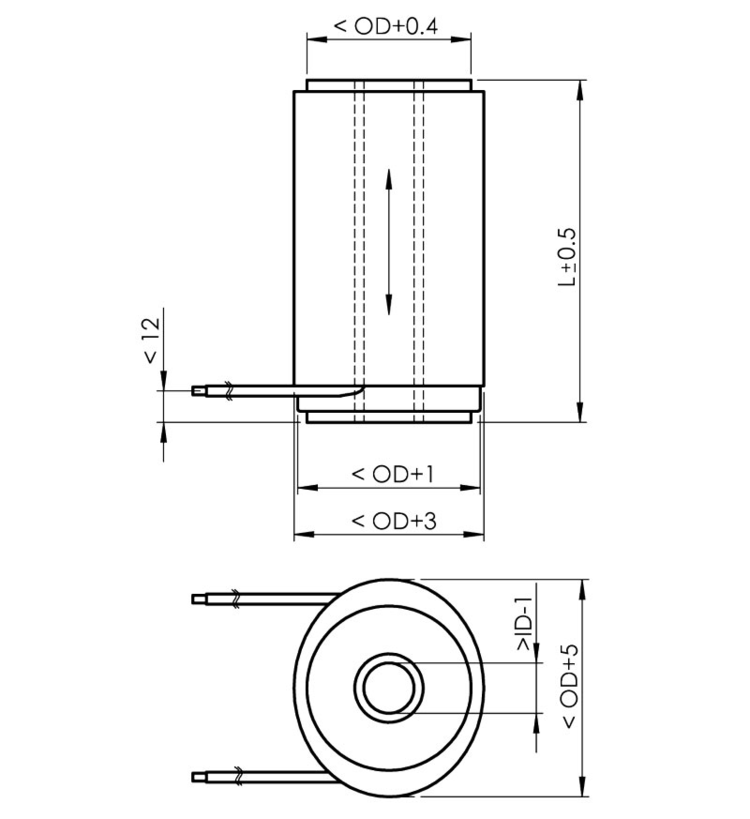

PICA Thru, dimensions in mm

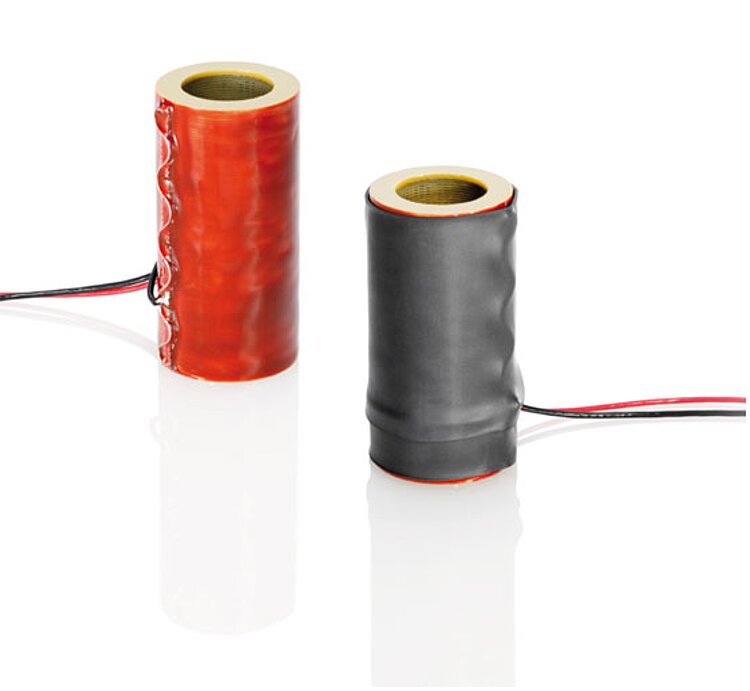

PICA Thru are manufactured in various sizes. Standard versions are delivered with stranded wires and are covered in black. Custom designs are available on request.

Operating voltage 0 to 1000 V. Long lifetime without derating. High specific displacement. A mechanical preload can be attached via inner holes

SGS sensors for positional stability
PZT ceramic material
Operating voltage range, displacement, layer thickness
Load capacity, force generation
Geometric shapes: round, rectangular, various cross sections
Mechanical interface: flat
Integrated piezoelectric detector layers
Special high / low temperature versions
UHV-compatible versions up to 10^-9hPa
Non-magnetic versions
Extra-tight length tolerances

Industry and research. For optics, precision mechanics and machining, laser tuning

Télécharger la fiche technique Aller aux spécifications Aller au devis / à la commande

Datasheet

pdf - 1 MB

pdf - 1 MB

	Displacement	Diameter OD	Diameter ID	Length L	Blocking force	Stiffness	Electrical capacitance	Resonant frequency
	µm	mm	mm	mm	N	N/µm	nF	kHz
P-010.00H	5	10	5	7	1200	230	15	144
P-010.10H	15	10	5	15	1700	110	40	67
P-010.20H	30	10	5	27	1800	59	82	39
P-010.40H	60	10	5	54	1800	29	180	21
P-016.00H	5	16	8	7	2900	580	42	144
P-016.10H	15	16	8	15	4100	270	120	67
P-016.20H	30	16	8	27	4500	150	230	39
P-016.40H	60	16	8	52	4700	78	490	21
P-025.10H	15	25	16	16	7400	490	220	63
P-025.20H	30	25	16	27	8700	290	430	39
P-025.40H	60	25	16	51	9000	150	920	22
P-025.50H	80	25	16	66	9600	120	1200	17

Travel range: at 0 to 1000 V, tolerance -10 / 20 %.
Length L: Tolerance ±0.5 mm.
Blocking force: at 0 to 1000 V.
Electrical capacitance: Tolerance ±20 %, measured at 1 Vₚₚ, 1 kHz, RT.
Resonant frequency at 1 Vₚₚ, unloaded, unclamped. The value is halved for unilateral clamping.

Piezo ceramic type: PIC151.
Standard connections: FEP- insulated wire leads, 100 mm, AWG 24, Ø 1.15 mm.
Operating voltage: 0 to 1000 V.
Operating temperature range: -20 to 85 °C.
Standard mechanical interfaces: ceramic rings (passive PZT).
Outer surface: polyolefin shrink sleeving, black (outside); epoxy resin (inside).
Recommended preload for dynamic operation: 15 MPa.
Maximum preload for constant force: 30 MPa.

Custom designs or different specifications on request.
