PT230 PT Piezo Scanner Tubes

Highly Dynamic Operation at Low Loads

Radial and axial displacement
Subnanometer resolution
Ideal for OEM applications
Large choice of designs
UHV-compatible to 10^-9 hPa

Aller au devis / à la commande

PT piezo tube actuators, dimensions in mm. Length L, outer diameter OD, and inner diameter ID see data table.

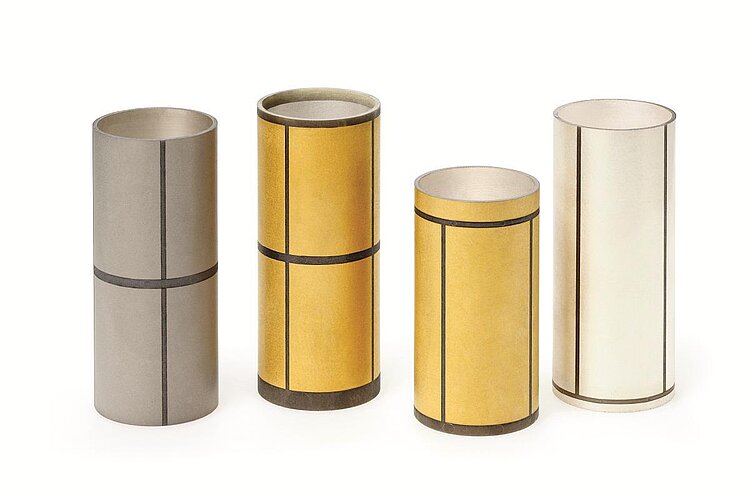

Special versions of the piezo scanner tubes with multi-segmented outer electrodes and wraparound electrodes

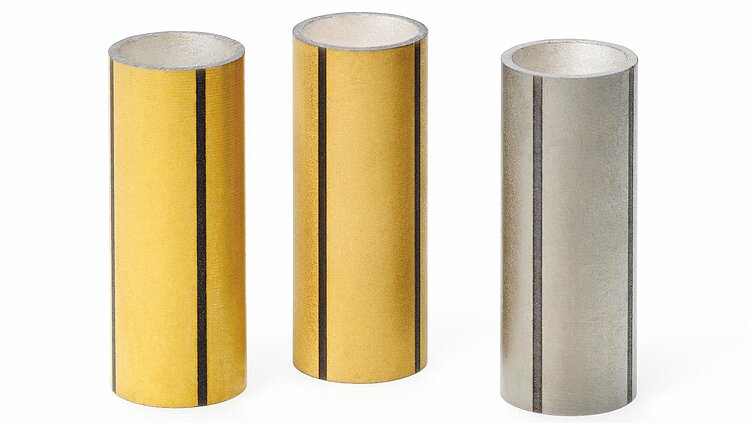

Piezo actuator / scanner tube

Bipolar operating voltage up to ±250 V. Fourfold segmented electrodes for axial and XY displacement. Monolithic piezoceramic actuator with minimal geometric tolerances. UHV-compatible to 10^-9 hPa. Short lead times.

Custom designs with modified specifications

Materials
Operating voltage range, displacement
Tolerances
Applied sensors
Special high / low temperature versions
Segmentation of the electrodes, wrap-around electrodes, circumferential insulating borders
Non-magnetic

Possible dimensions

Length L max. 70 mm
Outer diameter OD 2 to 80 mm
Inner diameter ID 0.8 to 74 mm
Min. wall thickness 0.30 mm

Fields of application

Industry and research, UHV environment up to 10^-9 hPa. For microdosing, micromanipulation, scanning microscopy (AFM, STM, etc.), fiber stretching.

Télécharger la fiche technique Aller aux spécifications

Datasheet

Version / Date

2023-12-13

pdf - 590 KB

Version / Date

2023-12-13

pdf - 592 KB

Télécharger

Motion	PT230.14	PT230.24	PT230.94	Tolerance
Max. axial displacement	± 4.5 µm	± 4.5 µm	± 4.5 µm
Max. XY deflection	± 16 µm	± 10 µm	± 35 µm
Drive Properties	PT230.14	PT230.24	PT230.94	Tolerance
Actuator type	Piezo scanner tube	Piezo scanner tube	Piezo scanner tube
Operating voltage	±250 V	±250 V	±250 V
Number of amplifier channels	4	4	4
Electrical capacitance per amplifier channel	4.5 nF	6.9 nF	2.1 nF	±20 %
Mechanical Properties	PT230.14	PT230.24	PT230.94	Tolerance
Cross section	annular	annular	annular
Piezo material	PIC255	PIC255	PIC255
Length	30 mm	30 mm	30 mm	±0,2 mm
Outer diameter	6.35 mm	10 mm	3.2 mm	±0,05 mm
Inner diameter	5.35 mm	9 mm	2.2 mm	±0,05 mm
Miscellaneous	PT230.14	PT230.24	PT230.94	Tolerance
Vacuum class	10⁻⁹ hPa	10⁻⁹ hPa	10⁻⁹ hPa
Recommended controllers / drivers	E-413.2 - E-413.6	E-413.2 - E-413.6	E-413.2 - E-413.6

Maximum displacement: When operated with +250 V / -250 V at opposite electrodes.

Electrical capacitance: Measured at 1 V_pp, 1 kHz, RT.

Piezo ceramic: Bakeout when short-circuited at 150 °C.

Inner electrode: GND. Outer electrodes: Thin film (CuNi, Au); inner electrodes: fired silver.

Ask about custom designs!

Télécharger la fiche technique Aller à la zone de téléchargement

Datasheet

Version / Date

2023-12-13

pdf - 590 KB

Version / Date

2023-12-13

pdf - 592 KB

Télécharger

Documentation

Handling and Electrical Contacting of Piezo Components

Version / Date

2019-02-12

pdf - 718 KB

Version / Date

2019-02-12

pdf - 725 KB

Aller au devis / à la commande

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

PT230.14

Piezo scanning tube; piezo actuator drive; L 30 mm × OD 6.35 mm × ID 5.35 mm; ±16 µm XY deflection; ±4.5 µm axial displacement; vacuum compatible to 10⁻⁹ hPa

Add to quote list Remove from quote list

PT230.24

Piezo scanning tube; piezo actuator drive; L 30 mm × OD 10 mm × ID 9 mm; ±10 µm XY deflection; ±4.5 µm axial displacement; vacuum compatible to 10⁻⁹ hPa

Add to quote list Remove from quote list

PT230.94

Piezo scanning tube; piezo actuator drive; L 30 mm × OD 3.2 mm × ID 2.2 mm; ±35 µm XY deflection; ±4.5 µm axial displacement; vacuum compatible to 10⁻⁹ hPa

Add to quote list Remove from quote list

Ask for custom design Go to quote list
