A-60x PIglide RT Rotary Air Bearing Module

Frictionless, Nonmotorized

Motion platform diameter from 50 mm to 300 mm
Load capacity to 425 kg
Eccentricity / flatness <200 nm
Can be mounted vertically or horizontally

Aller au devis / à la commande

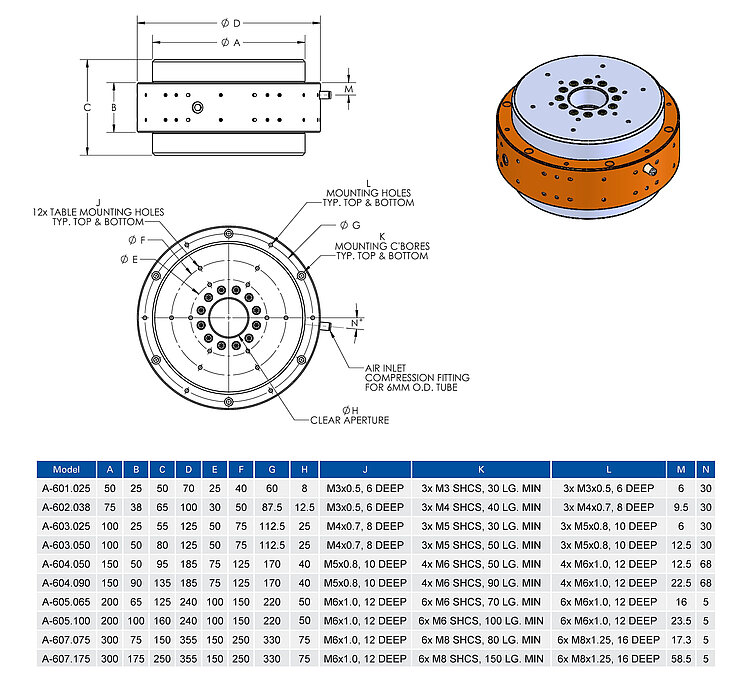

A-60x.xxx, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

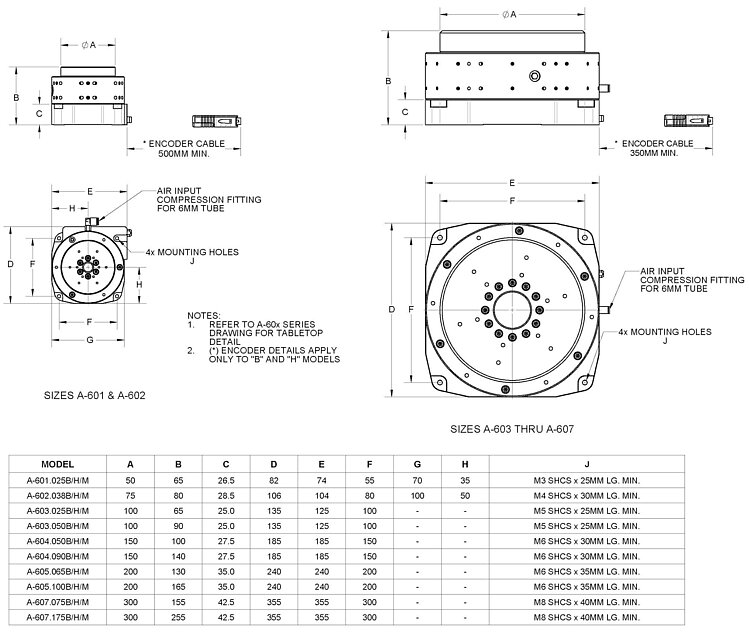

A-60x.xxxX, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

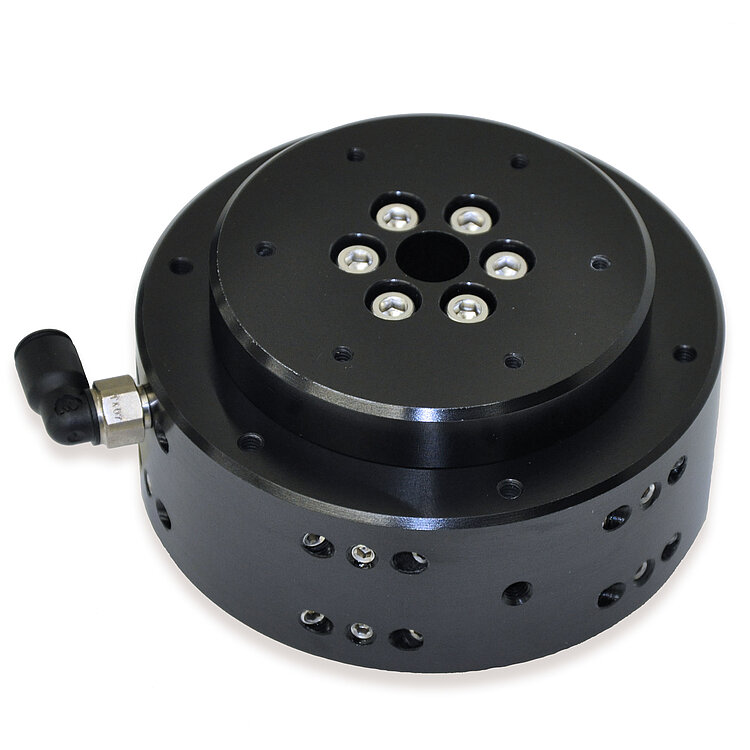

The PIglide RT series of nonmotorized passive rotary air bearings are designed for accuracy, precision, high stiffness, and ease of use. They can be used in any orientation and are easy to integrate with motors and encoders for complete positioning solutions.

The bearings of the RT series offer superior eccentricity, flatness, and wobble performance. Because they are completely friction-free, they exhibit no breakaway torque and no frictional resistance during operation. They are ideal for use in cleanrooms, require no maintenance or lubrication, and have unlimited lifetime.

Encoder for precise acquisition of stage angle during manual operation
Mounting base for horizontal mounting onto optical table and flat surfaces
PIglide filter and air preparation kits
Customized mounting flanges and square housings

Optical alignment, metrology, parts inspection, calibration, scanning, torque measurement.

Thanks to the friction-free motion, no particles are formed, which makes PIglide stages ideal for cleanroom applications.

Télécharger la fiche technique Aller aux spécifications

Datasheet

Version / Date

2020-11-10

pdf - 2 MB

Version / Date

2020-11-10

pdf - 2 MB

Version / Date

2021-01-14

pdf - 727 KB

Télécharger

Size and loads	Motion platform diameter /mm	Journal length / mm	Load capacity ⁽¹⁾ axial / radial /N	Permissible tip/tilt torque ⁽¹⁾ / N·m	Stiffness axial / radial / N/µm
A-601.025	50	25	134 / 57	0.57	26 / 8
A-602.038	75	38	299 / 132	1.13	57 / 22
A-603.025	100	25	536 / 115	1.70	96 / 18
A-603.050	100	50	536 / 229	4.52	96 / 35
A-604.050	150	50	1206 / 344	22.6	210 / 64
A-604.090	150	90	1206 / 605	36.7	210 / 113
A-605.065	200	65	2144 / 577	39.6	385 / 110
A-605.100	200	100	2144 / 917	67.8	385 / 175
A-607.075	300	75	4244 / 1203	141.3	788 / 204
A-607.175	300	175	4244 / 2789	282.5	788 / 475

⁽¹⁾ Capacities listed assume supply pressure of 80 psi. Please contact PI if other pressures are required.

Performance specifications	Eccentricity ⁽²⁾ / nm	Flatness ⁽²⁾ / nm	Wobble ⁽²⁾ / µrad	Max. velocity ⁽³⁾ / rpm	Moment of inertia / kg·mm²	Rotating mass / kg	Overall mass / kg
A-601.025	300	100	5	3000	35	0.15	0.4
A-602.038	250	75	4	3000	231	0.4	1.2
A-603.025	175	75	2.5	3000	705	0.7	1.5
A-603.050	175	75	2.5	3000	750	0.8	2.5
A-604.050	100	50	2	3000	4715	2.1	5.4
A-604.090	100	50	2	3000	5050	2.6	8.2
A-605.065	100	50	1.5	2000	17900	4.6	11.6
A-605.100	100	50	1.5	2000	18800	5.3	16.3
A-607.075	75	40	1	1000	181900	19.4	38.1
A-607.175	75	40	1	1000	206700	26.0	59.0

⁽²⁾ Precision specifications are dependent on quality of mounting base, payload, orientation, and external forces on the bearing. For application-specific parameters, please contact PI. Values shown are static (no rotational velocity during measurement).

⁽³⁾ Velocity may be limited by the encoder option or payload imbalance. Please contact PI for further details.

Optional encoders	Sensor signal	Sensor resolution / µrad	Max. velocity / rpm	Reference switch
A-601.xxxH	A/B quadrature, differential, RS-422, 4 MHz	192	2500	1 / revolution, one count over one step of the encoder, synchronized to output signal
A-602.xxxH	A/B quadrature, differential, RS-422, 4 MHz	133	2000	1 / revolution, one count over one step of the encoder, synchronized to output signal
A-603.xxxH	A/B quadrature, differential, RS-422, 4 MHz	100	1500	1 / revolution, one count over one step of the encoder, synchronized to output signal
A-604xxxH	A/B quadrature, differential, RS-422, 4 MHz	66.4	1000	1 / revolution, one count over one step of the encoder, synchronized to output signal
A-605.xxxH	A/B quadrature, differential, RS-422, 4 MHz	50	800	1 / revolution, one count over one step of the encoder, synchronized to output signal
A-607.xxxH	A/B quadrature, differential, RS-422, 4 MHz	33.5	500	1 / revolution, one count over one step of the encoder, synchronized to output signal
A-601.xxxB	Absolute, BiSS-C 32-bit	0.0015	3500	–
A-602.xxxB	Absolute, BiSS-C 32-bit	0.0015	3000	–
A-603.xxxB	Absolute, BiSS-C 32-bit	0.0015	2000	–
A-604.xxxB	Absolute, BiSS-C 32-bit	0.0015	1500	–
A-605.xxxB	Absolute, BiSS-C 32-bit	0.0015	1000	–
A-607.xxxB	Absolute, BiSS-C 32-bit	0.0015	500	–

Miscellaneous	A-60x
Operating pressure	75 to 85 psi (515 to 585 kPa)
Air consumption	< 2.0 SCFM (57 SLPM)
Air quality	Clean (filtered to 1.0 μm or better) - ISO 8573‑1 Class 1 Oil free - ISO 8573‑1 Class 1 Dry (-15 °C dew point) - ISO 8573‑1 Class 3
Materials ⁽⁴⁾	Hardcoat aluminum, stainless steel mounting hardware

⁽⁴⁾ Alternative stage surface materials, such as stainless steel, are available. Please contact PI for a quote.
