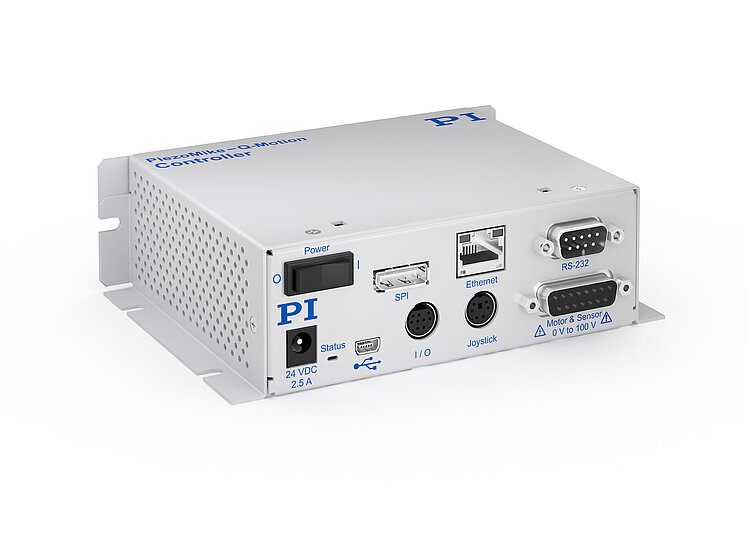

E-873 Q-Motion® Servo Controller, 1 Axis
For Piezoelectric Inertia Drives, SPI, TCP/IP, USB, RS-232 Interfaces
- Broadband encoder input
- Macro programmable for stand-alone functionality
- Fast startup due to ID chip detection
- Data recorder
- Digital I/O ports (TTL)
- Joystick for manual operation
Digital servo controller for piezo inertia drives
Integrated power amplifier and voltage generator for piezo inertia drives. Point-to-point motion, trapezoidal velocity profile, actuator mode for nanometer precision positioning at the target position. 1 axis.
Encoder inputs
Differential signal transmission for digital (A/B) or analog (sin/cos) encoder signals. BiSS interface for absolute encoders. TTL inputs for limit and reference switches.
Interfaces
USB, RS-232, TCP/IP, and SPI for commanding. I/O lines (analog/digital) for automation. Connector for analog joystick.
Extensive functions, software support
Powerful macro command language. Nonvolatile macro storage, e.g., for stand-alone operation with autostart macro. Data recorder. ID chip detection for fast startup. PID controller, parameter changing during operation. Extensive software support, e.g., for NI LabVIEW, C, C++, MATLAB, Python. PIMikroMove user software.
Specifications
Datasheet E-873

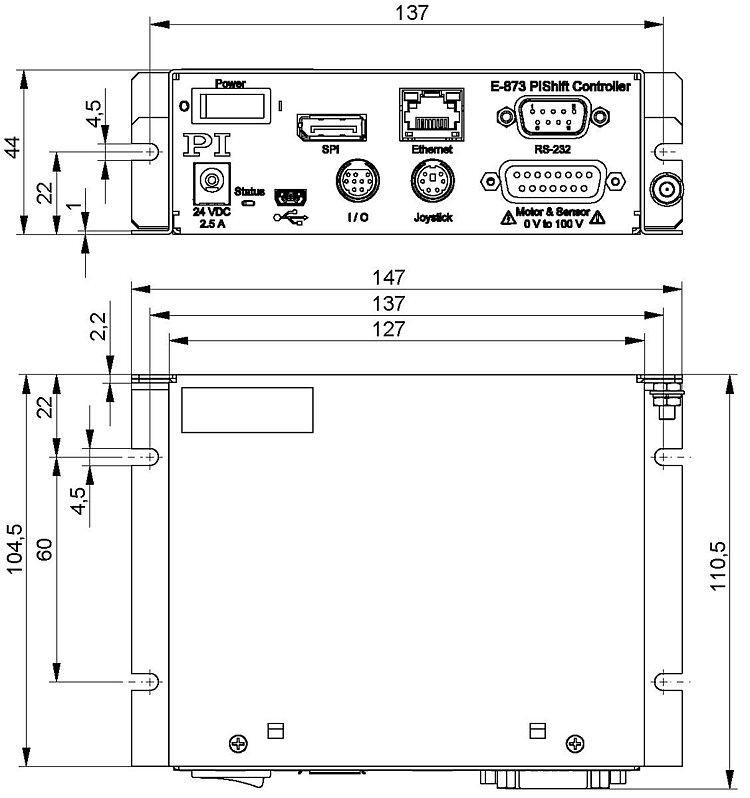

Specifications
E-873.1AT | |
---|---|
Function | Q‑Motion® controller for positioning systems with piezo inertia drives, also suitable for closed-loop PiezoMikes Benchtop device with option for cabinet mounting |
Axes | 1 |
Supported functions | Startup macro. Data recorder for recording operating data such as motor voltage, velocity, position or position error. Internal safety circuitry: Watchdog timer. ID chip detection. |
Motion and control | E-873.1AT |
---|---|
Controller type | PID controller, parameter changing during operation |
Servo cycle time | 50 µs |
Dynamics profile | Trapezoidal velocity profile. Point-to-point motion. |
Encoder input | Analog encoder inputs sine-cosine, interpolation selectable to 20000. Interpolation electronics preset to differential transmission, 1 Vppand 2.5 V encoder signal offset. BiSS interface for absolute encoders. |
Stall detection | Automatic motor stop |
Input limit switch | 2 × TTL (pull-up / pull-down, programmable) |
Input reference switch | 1 × TTL for integrated reference in the encoder |
Interfaces and operation | E-873.1AT |
---|---|
Communication interfaces | TCP/IP: RJ45/Ethernet; USB: Mini-B; RS-232: D-sub 9 (m); SPI |
Motor / sensor connector | D-sub 15 (f) |
I/O lines | 4 analog / digital inputs, 4 digital outputs |
Command set | PI General Command Set (GCS) |
User software | PIMikroMove |
Application programming interfaces | API for C / C++ / C# / VB.NET / MATLAB / Python, drivers for NI LabVIEW |
Manual control (optional) | Analog joystick |
