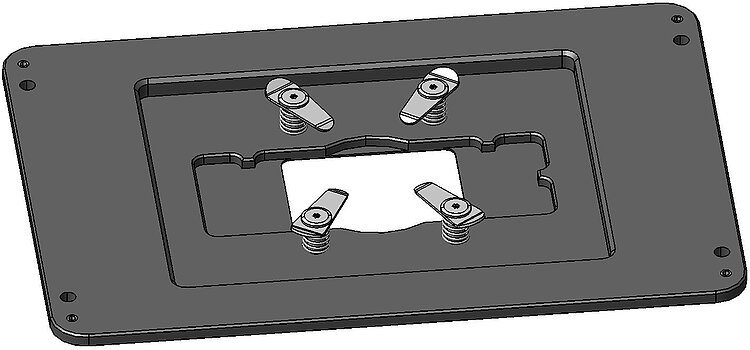

P-736.PDO Petri Dish Holder

P-736.PDO Petri Dish Holder

For PD73Z2COW / PD73Z2ROW PInano® Z Piezo Scanner Systems, Olympus Microscopes

  • Fixing of Petri dishes Ø 35 mm
  • Fine adjustment of the focal plane with four screws
  • Can be screwed on with M3 screws
to content Aller au devis / à la commande

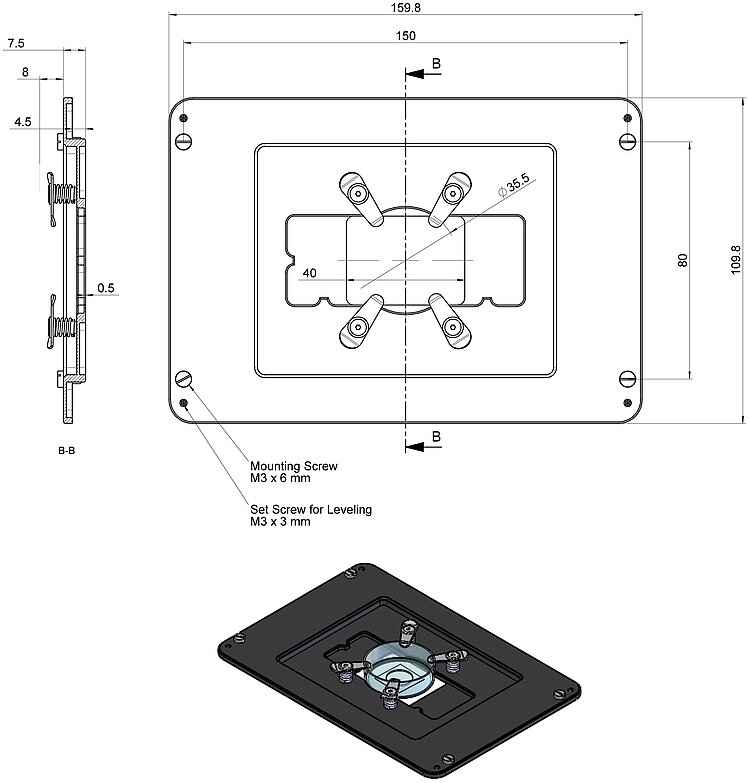

P-736.PDO, dimensions in mm
P-736.PDO Petri Dish Holder
Description du produit Spécifications Téléchargements Devis / Commande
Aller aux spécifications

Specifications

Datasheet

Datasheet P-736.PDO

Version / Date
2022-12-13
pdf - 525 KB
Version / Date
2022-12-13
pdf - 557 KB
Télécharger
Télécharger
Aller à la zone de téléchargement

Downloads

Datasheet

Datasheet

Datasheet P-736.PDO

Version / Date
2022-12-13
pdf - 525 KB
Version / Date
2022-12-13
pdf - 557 KB
Télécharger
Télécharger

3D Models

3D Models

3-D-model P-736.PDx

zip - 2 MB

Brochure

Brochure

Microscope Stage Configurator

Sample Stages and Holders for Inverted Microscopes

Version / Date
BRO70E
pdf - 3 MB
Anglais
Télécharger
Aller au devis / à la commande

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

Ask for custom design Go to quote list

Contactez un ingénieur!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.

0033 442 97 52 30info.france@pi.ws
Contactez-nous
Compatible Products Related Accessories
U-780 PILine® XY Stage System with Controller and Joystick
P-736 PInano® Z Microscope Scanner for Microtiter Plates
