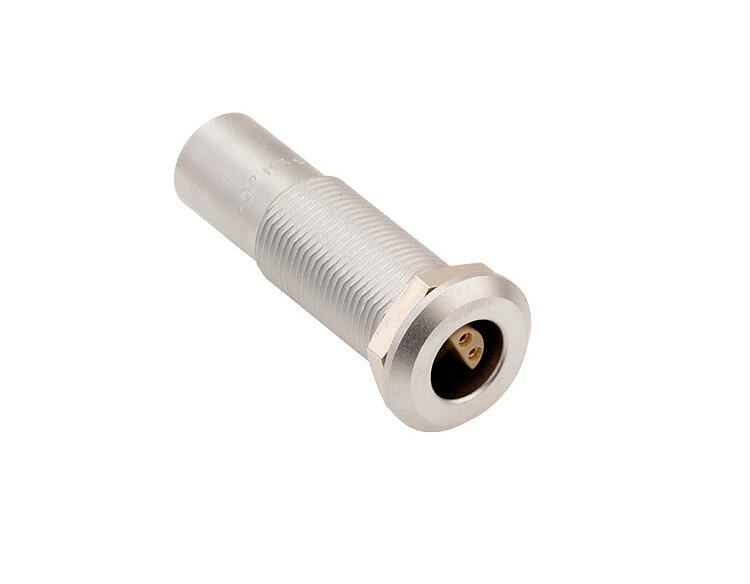

N-400.VA PiezoMike Vacuum Feedthrough

Interface Between Air Side and Vacuum

Accessory for PiezoMike actuators and electronics without sensor evaluation
Closure and port for vacuum chambers
Vacuum compatible to 10^-6 hPa

Connection of standard controllers to vacuum applications

Vacuum feedthroughs are the interface between the mechanics within the vacuum enclosure and the controller on the air side. They enable standard controllers to be connected to vacuum applications.

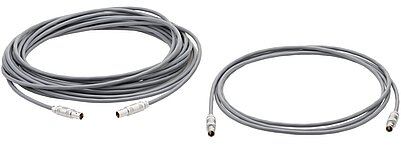

Air-side adapter cables are available in different lengths. They are not part of the feedthrough's scope of delivery.

Télécharger la fiche technique Aller aux spécifications Aller au devis / à la commande

Datasheet

Version / Date

2023-05-12

pdf - 122 KB

Version / Date

2023-05-12

pdf - 123 KB

Télécharger

Aller au devis / à la commande

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

N-400.VA

PiezoMike vacuum feedthrough; LEMO SWH.0S.303.CLMPV, 3-pole; vacuum-compatible to 10^-6 hPa; suitable for LEMO FFA.0S.303.CLA32 connector (both sides)

Add to quote list Remove from quote list

Ask for custom design Go to quote list
