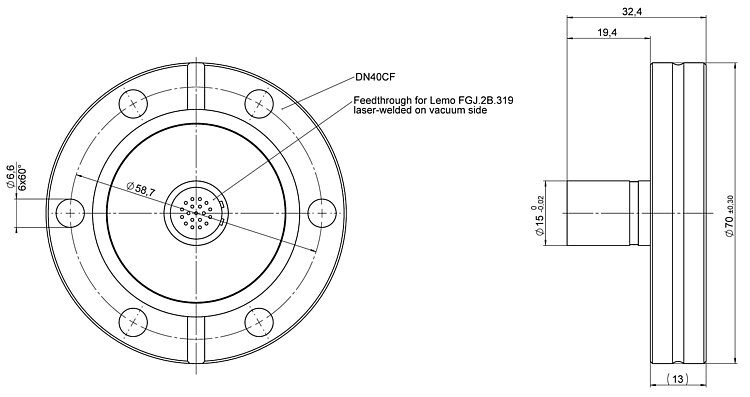

Vacuum feedthrough (drive and sensor signals), 19-pole LEMO (m/m), DN40CF
NOUVEAU
N-331.1LU Vacuum Feedthrough

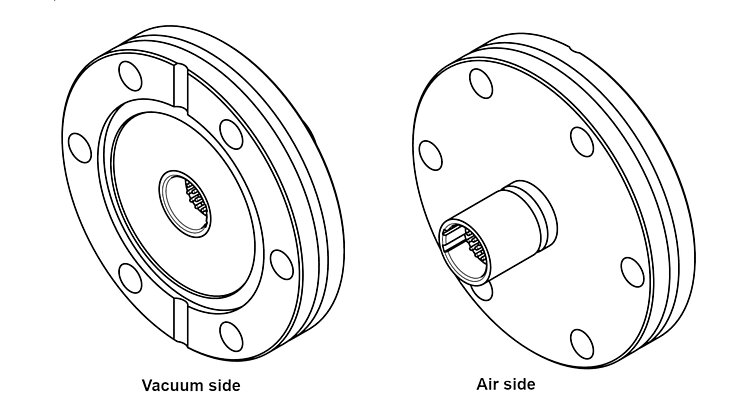

Interface Between Air Side and Ultrahigh Vacuum (UHV)
- Accessories for N-331.xxU PICMAWalk linear actuators
- Closure and port for vacuum chambers
- Vacuum compatible to 10-9 hPa
N-331.1LU Vacuum Feedthrough
Description du produit
Spécifications
Téléchargements
Devis / Commande
Connection of standard controllers to vacuum applications
Vacuum feedthroughs are the interface between the linear actuator within the vacuum enclosure and the controller on the air side. They enable standard controllers to be connected to vacuum applications.
Air-side adapter cables are available in different lengths. They are not part of the scope of delivery for the feedthrough.
Specifications
Datasheet
Datasheet N-331.1LU
Version / Date
2023-03-30
pdf - 368 KB
Version / Date
2023-03-30
pdf - 368 KB
Specifications
N-331.1LU | ||
---|---|---|
Flange material | Stainless steel 1.4301 | |
Seal material | Aluminum oxide ceramic | |
Leak rate | 1x10-9 | |
Test voltage | 800 V | |
Maximum current per pin | 7 A | |
Air side connector | LEMO FGJ.2B.319 | |
Vacuum side connector | LEMO FGJ.2B.319 | |
Vacuum class | 10⁻⁹ hPa | |
Operating temperature range | 0 to 50 °C | |
Maximum bake out temperature | 150 °C |
Note on test voltage: for 500 MΏ, specified value applies for direct current (DC)
Note on maximum current for each pin: 3.15 A/Pin if all pins are used
Downloads
Datasheet
Datasheet
Datasheet N-331.1LU
Version / Date
2023-03-30
pdf - 368 KB
Version / Date
2023-03-30
pdf - 368 KB
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
