F-122.5DC

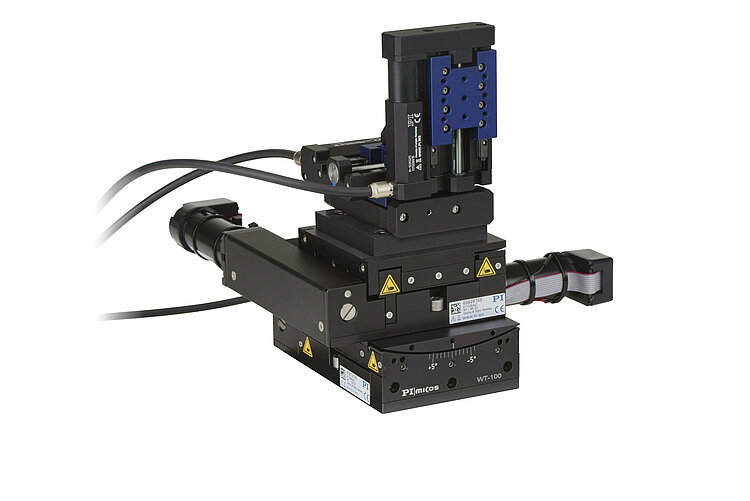

Fiber alignment system consisting of stacked M-122 linear stages and WT-85/WT-100 goniometers, travel ranges to 25 mm / 10°, DC motor
F-122 5-Axis Fiber Alignment System
Ideal for Array Devices
- Angle optimization by goniometer
- Safety due to integrated sensor technology
- Long travel ranges to 25 mm respectively 10°
- Maximum velocity of 20 mm/s respectively 15°/s

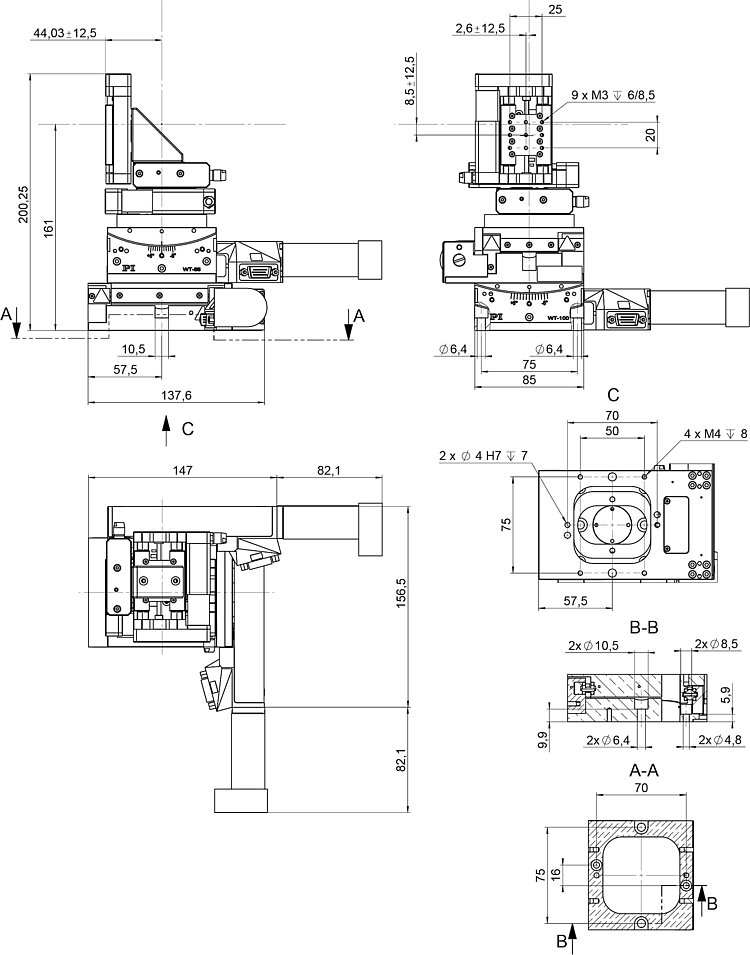

F-122.5DC, dimensions in mm. Note that the decimal points are separated by a comma in the drawings.
F-122 5-Axis Fiber Alignment System
Description du produit
Spécifications
Téléchargements
Devis / Commande
Robust and precise drives
The XYZ setup of the fiber alignment system consists of three motorized linear stages from the M-122 series for linear motion, and the WT-85 and WT-100 goniometers for angular motion. All stages are distinguished by their high precision and robustness. Because all drives are equipped with position sensors, it is possible for example, to reliably prevent collisions with expensive silicon wafers.
Extensive software package
The fiber alignment system is supplied with an extensive software package including the PIMikroMove graphic user software for startup and operation of all PI systems.
Programming interfaces are included in the software package that allow the user to integrate a PI controller into their own user programs. The control of the positioning system therefore becomes part of the user program. Interfaces are available for all common programming languages including NI LabVIEW and MATLAB.
Furthermore, there is an option to purchase the C-990.FA1 software. It provides a particularly convenient method for setting up the axes for scanning, performing the scans, and displaying the results.
Automatic alignment
In conjunction with the C-884.6DC and the optional C-990.FA1 software, it is possible to use the F-122.5DC 5-axis alignment system system for fully automatic alignment of light-transmitting components. For this purpose, the optical intensity signal is made directly available to the controller via its analog input.
Application fields
Alignment of optical components, qualification of optical components in silicon photonics
Specifications
Datasheet
Datasheet F-122.5DC
Version / Date
2020-06-25
pdf - 384 KB
Version / Date
2020-06-25
pdf - 385 KB
Version / Date
2021-01-14
pdf - 591 KB
Version / Date
2018-12-12
pdf - 869 KB
Specifications
Motion and positioning | F-122.5DC | Unit |
|---|---|---|
Active axes | X, Y, Z, θX, θY | |
Travel range in X, Y, Z | 25, 25, 25 | mm |
Travel range in θX, θY | 10, 10 | ° |
Typical minimum incremental motion X, Y, Z | 0.75 | µm |
Minimum incremental motion θX, θY, typ. | 17.5 | µrad |
Design resolution X, Y, Z, | 0.1 | µm |
Design resolution θX, θY | 3.5 (WT-100) | µrad |
Unidirectional repeatability X, Y, Z, | 0.3 | µm |
Unidirectional repeatability θX, θY | 70 | µrad |
Backlash X, Y, Z | 1 | µm |
Max. velocity X, Y, Z | 20 | mm/s |
Max. velocity θX, θY | 15 | °/s |
Technical data specified at 20±3 °C.
* Typical time span for scanning the entire area and moving to the highest intensity
Connecting cables are not in the scope of delivery and must be ordered separately.
Downloads
Datasheet
Datasheet
Datasheet F-122.5DC
Version / Date
2020-06-25
pdf - 384 KB
Version / Date
2020-06-25
pdf - 385 KB
Version / Date
2021-01-14
pdf - 591 KB
Version / Date
2018-12-12
pdf - 869 KB
Documentation
Documentation
Technical Note F122T0001
F-122.5DC 5-Axis Alignment System
Version / Date
2020-06-30
pdf - 1 MB
Anglais
Separate connection cable required for motor and sensor connection respectively. Connecting cables are not in the scope of delivery, although this may be stated otherwise in the manual. The manual is currently being revised.
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
Accessories
C-990.FA1
PI FA1 Alignment Tool, software for aligning optoelectronic components; for use with the C-884 controller for motorized axes and the E-727.AS controller with fast alignment routines (spiraled area scan) for piezo axes with strain gauge sensor.
F-603.BNC
Adapter set for BNC connectors, consisting of F131B0002 adapter box, D-sub 25 to 4 x BNC and K040B0329 Y cable, D-sub 25 (f) to D-sub 15 (m) and HD D-sub 26 (m).
C-887.MC2
Manual control unit for hexapods, USB connector with 3 m connection cable, rotary knobs for all Cartesian axes, buttons for motion stop and referencing, position display
