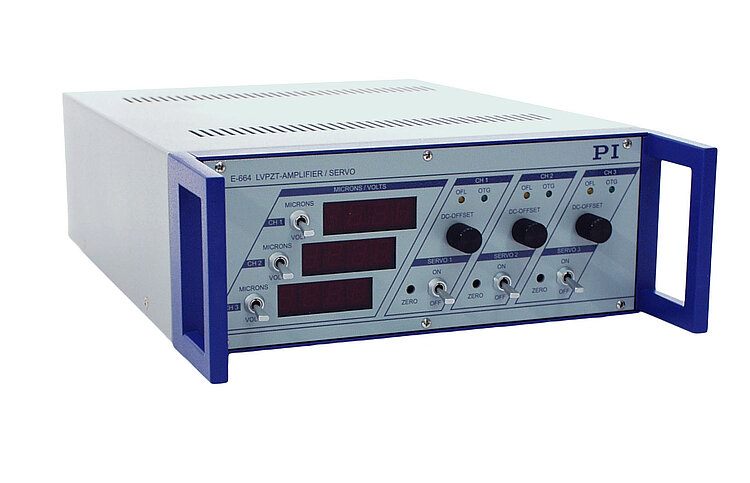

E-664 NanoCube® Piezo Controller

For the P-611.3S XYZ-Nanopositioning System

Peak power 3 × 14 W
Position control with notch filter for higher bandwidth and stability
Voltage / position indicator
Inexpensive controller for P-611.3S NanoCube® nanopositioning systems

The E-664 piezo amplifier and servo controller is especially tailored to the operating requirements of the P-611.3S NanoCube® XYZ nanopositioning system. Three powerful and low-noise piezo amplifiers and the control electronics with instrument amplifiers for high-resolution strain gauge sensors allow a position resolution up to 2 nm as well as dynamic operation.

The combination of the E-664 controller and P-611.3S NanoCube® makes it an inexpensive system for 3-D nanopositioning.

Télécharger la fiche technique Aller aux spécifications Aller au devis / à la commande

Datasheet

Version / Date

2018-03-09

pdf - 102 KB

Version / Date

2018-03-09

pdf - 103 KB

Télécharger

	E-664.S3
Function	Power amplifier & position servo controller for P-611.3S NanoCube® nanopositioning system
Axes	3

Sensor	E-664.S3
Controller type	P-I (analog), notch filter
Sensor type	SGS

Amplifier	E-664.S3
Input voltage range	-2 to 12 V
Output voltage	-20 to 120 V
Peak power per channel, < 5 ms	14 W
Average output power / channel, >5 ms	6 W
Peak current / channel, <5 ms	140 mA
Average output current / channel, >5 ms	60 mA
Current limitation	Short-circuit proof
Voltage gain	10 ±0.1
Ripple, noise, 0 to 100 kHz	<1 mV_rms

Interfaces and operation	E-664.S3
Piezo / sensor connection	Sub-D 25 (f)
Analog input socket	3 × BNC (rear), I/O connector
I/O lines	14-pin socket for on-target and overflow status, control input and sensor monitor output
Display and indicators	3 × 3½ digits, LED

Miscellaneous	E-664.S3
Operating temperature range	5 to 50°C
Overheat protection	Deactivation at 75°C
Dimensions	236 mm × 88 mm × 273 mm + handles
Mass	3 kg
Operating voltage	90 to 120 / 220 to 240 VAC, 50 to 60 Hz (linear power supply)
Max. power consumption	60 W
